Compact, reliable, and low-power Codecs with 24/7 operation—supporting streaming, editing, recording, decoding, and playback for applications in live streaming, IPTV, education, conferencing, and surveillance.
| Video Specifications | |

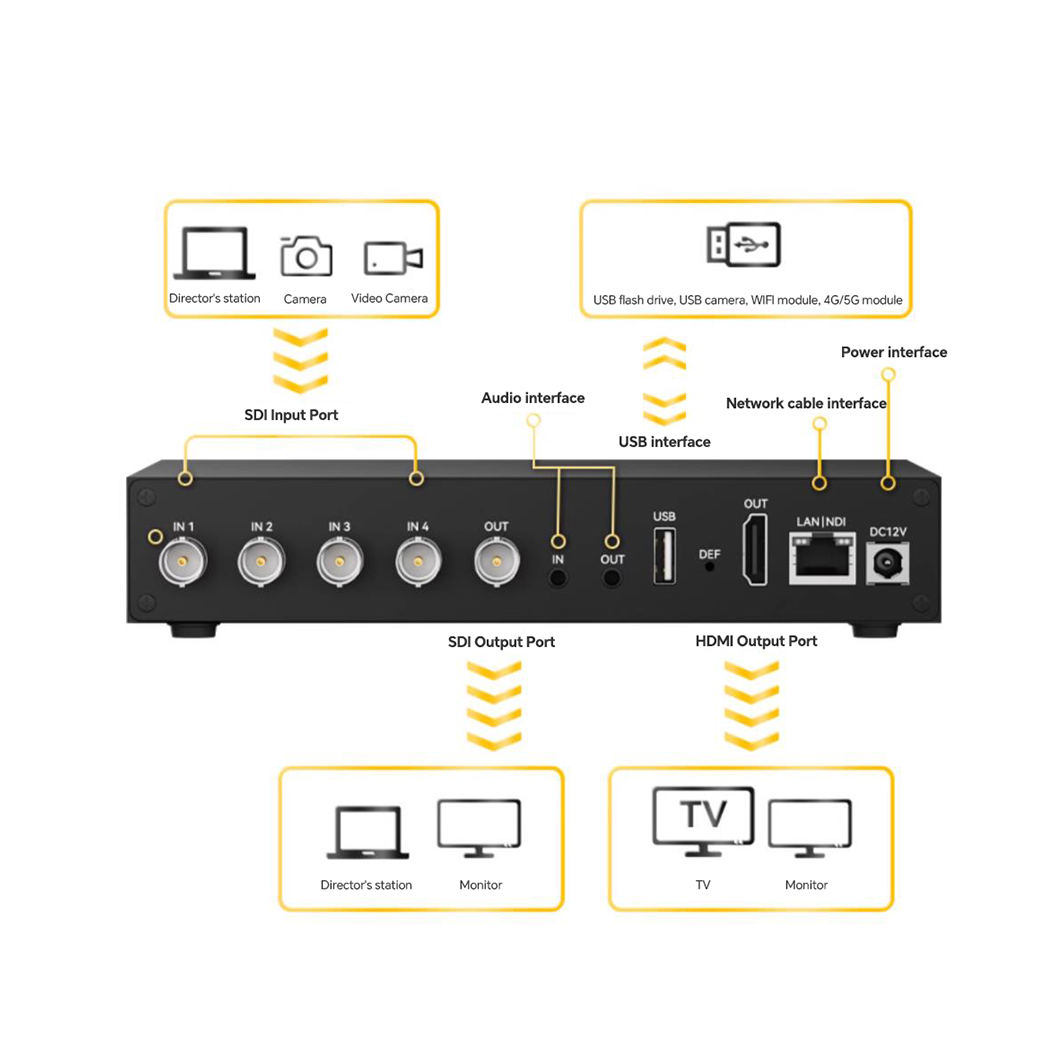

| SDI Input | 4 × 3G-SDI inputs, supporting up to 1080p60 |
| SDI Output | 1 × 3G-SDI output, supporting up to 1080p60 |
| HDMI Output | 1 × HDMI output, supporting up to 4K@30fps |
| Supported Resolutions | 4K30, 1080p, 720p, 1080i, 720i, 1600×1200, 1440×900, 1366×768, 1280×1024, 1024×768, 800×600, 640×480 |
| Encoding Formats | H.264 Baseline / Main / High Profile; H.265 Main Profile; MJPEG / JPEG Baseline |
| Decoding Formats | H.264, H.265, MJPEG |
| Encoding Resolution | Main Stream: 4K, 1080p, 720p, 360p; Sub 720p, 360p |
| Frame Rate | Adjustable from 1–60 fps |
| Multi-Reference Frame | Supports SmartP and DualP |
| Maximum Bitrate | 20 Mbps |
| Bitrate Control | CBR / VBR / AVBR / FIXQP / QPMAP |
| Audio Specifications | |
| Input Interfaces | SDI and 3.5mm Line-In (can be used simultaneously) |
| Output Interfaces | SDI, HDMI, and 3.5mm Line-Out (can be used simultaneously) |
| Sampling Rates | 48kHz, 44.1kHz, 32kHz, 16kHz, 8kHz |
| Audio Encoding Formats | AAC, MP3, MPEG2, PMCA, PMCU |
| Network Specifications | |
| Ethernet | 10/100M RJ45 Ethernet port |
| Wi-Fi | Optional external Wi-Fi module |
| Protocols | RTSP, RTMP, HTTP, HLS, UDP, Unicast, Multicast |
| NDI | Supports NDI HX (license required) |
| SRT | Supported |
| GB28181 | Supports transmission |
| ONVIF | Supports both transmission and reception |
| RTMPS | Supported |
| General Specification | |
| Power Supply | DC-12V 2A |
| Power Consumption | < 15W |
| Operating Temperature | 0°C to 70°C |
| Dimensions (L×W×H) | 176×126×33 |
| Net Weight | 680g |
