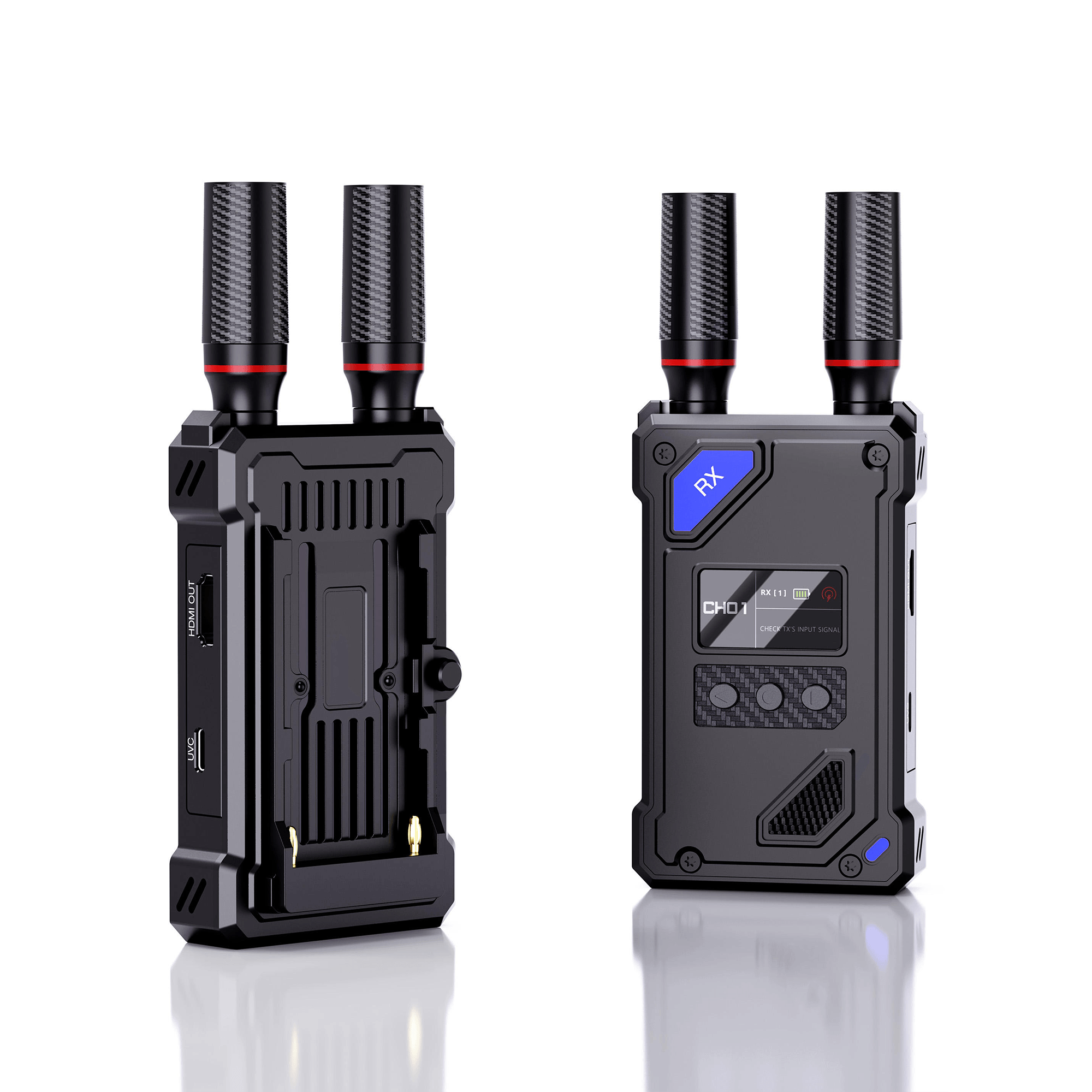

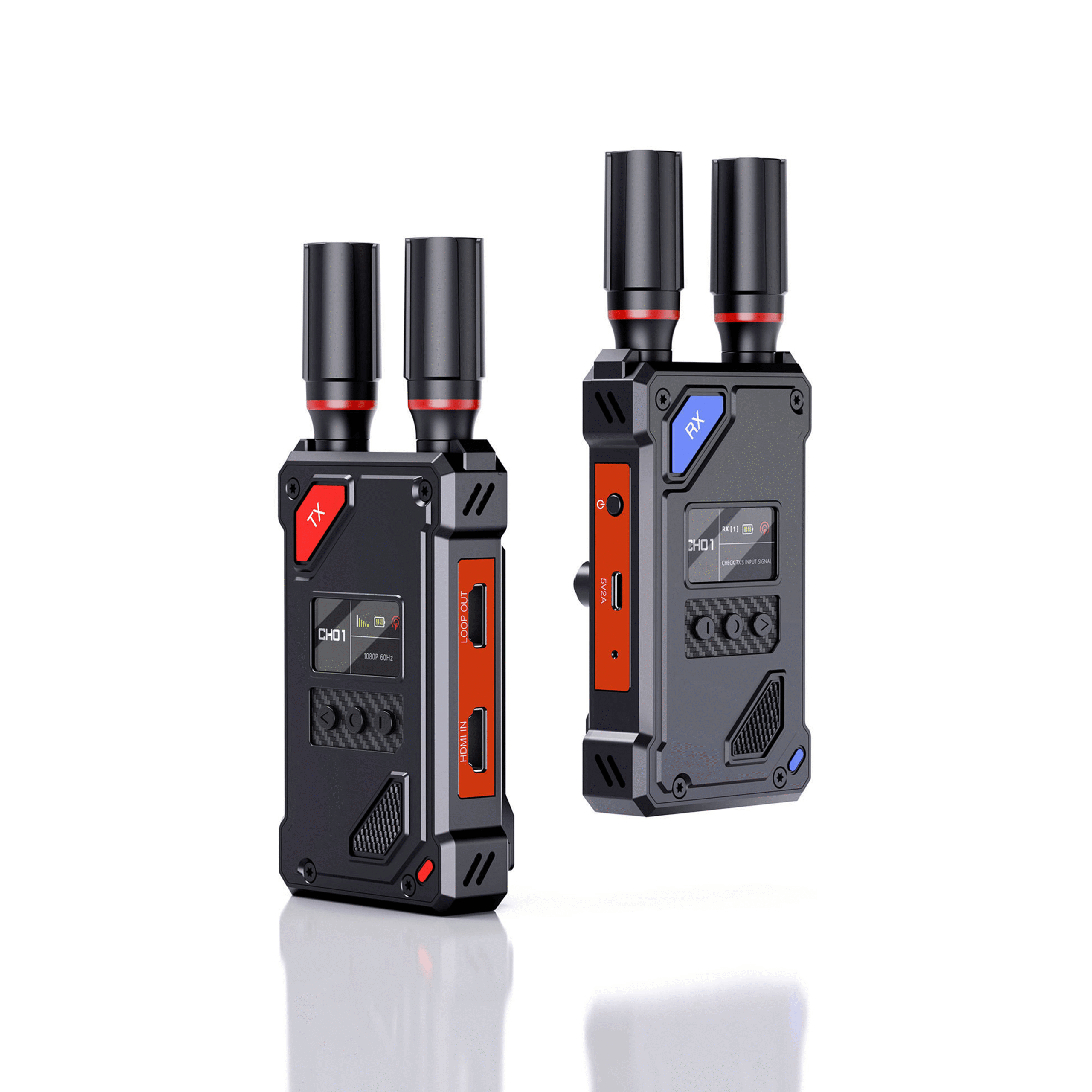

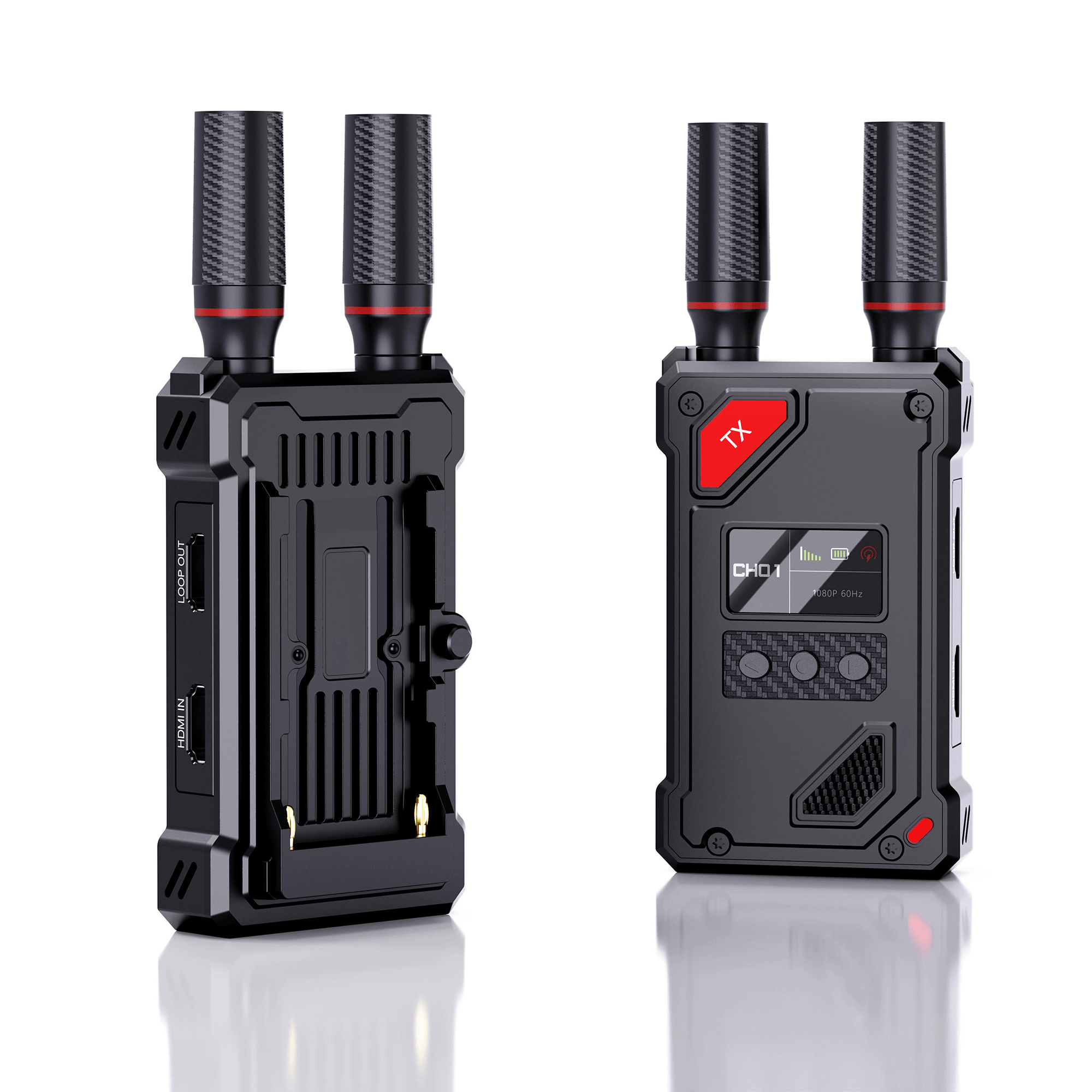

The MA087 Wireless video transmission system with 1500ft range, dual-band 2.4G/5G, HDMI input/output, UVC streaming, and LCD display. Ideal for live streaming and video production
| Wireless Range | 1500FT/450Meters |
| Frequency Band | 2.4GHz/5GHz |
| Video Decoding | H.265 |
| Latency | ≤0.05s |
| TX Input Resolution | 1920×1080P@60Hz(downward compatible) |
| RXOutput Resolution | 1920×1080P@60Hz |
| TX Loop-Out Resolution | 1920x1080P@60Hz |
| Channel | CH01-CH20 |
| RXUVC Output | Resolution:
1920x1080P@60Hz(USB 3.0) 1920x1080P@30Hz(USB 2.0) |
| Wireless Standard | IEEE 802.11a/b/g/n/ac |
| Video Formats | AVI,MPEG,Div X,MOV,ASF,WMV,RMVB,QuickTime |
| Audio Formats | AAC,FLAC,APE,AMR,OggVorbis,VQF,RealAudio, WMA,MIDI,MPEG-4,MP3,MPEG,AIFF,WAVE,CD |
| HDMI Standard | HDMI 1.3.HDCP 1.4 |
| Power Supply | 5V/2A Type-Cor NP-F series batteries |
| Bit-rate | 20Mbps |
| Material | PC+ABS+Metal |
| Operating Environment | Temperature:-20℃ to 50℃
Humidity:5%to 70%RH |
| Applications | Live streaming,video conferencing,
educational demosoutdoor filming.churches, homes offices,meetings,educational training |
| Transmission Modes | 1TXsupports 1RX/2RX/3RX/4RX/5RXconnections |
|
Operating Environment |
1TX-1RX:1500ft/450m
1TX-2RX:1000ft/300m 1TX-3RX:720ft220m 1TX-4RX:490ft/150m 1TX-5RX:330ft/100m Open field,no obstacles/interference |
