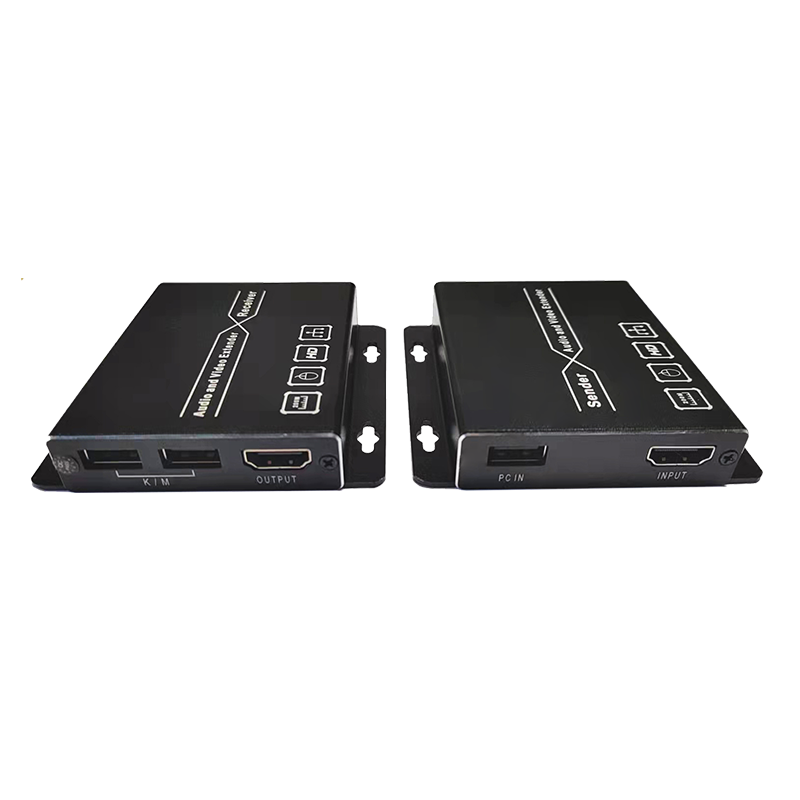

MA-EX610H/K 200M HDMI KVM Extender
MA-EX610H/K 200M HDMI KVM Extender - Image 2

MA-EX610H/K 200M HDMI KVM Extender

This HDMI extender is primarily used to extend the transmission distance of HDMI audio and video signals, ideal for situations where standard HDMI cable length is insufficient. Utilizing a single Cat5e or higher-grade network cable, it supports high-definition audio and video transmission of up to 200 meters. It is widely suitable for applications such as HD conference systems, film and television production, teaching systems, and digital advertising.

Request Quote

  • Small size, thin and light design, strong anti-interference ability; easy to install
  • lUse UTP Cat5e/6 network cable to transmit 200 meters
  • lVideo resolution up to 1920*1080@60Hz
  • lSupport 1 to multiple receiver transmission (up to 253 points) through Ethernet switch
  • lSupport mouse and keyboard remote control
  • lHDMI 1.3 and HDCP 1.2 standards
  • lHigh compatibility, automatically matching signal source and display device
  • lBuilt-in automatic adjustment system to make the image smooth, clear and stable
  • lBuilt-in ESD electrostatic protection circuit, simple installation, plug and play
  • lTCP/IP Ethernet communication, real-time video/audio transmission based on IP
  • lApplication areas: 1:n solution (stores, restaurants, classrooms, monitors, speakers, energy saving, virtual desktops, digital cameras, TCP/IP networks)
  • lSupport ordinary 100M or 1000M Ethernet switches






Video

 Supported protocols HDMI 1.3; HDCP 1.2
HDMI pixel bandwidth 165MHz, all digital
HDMI interface bandwidth Total bandwidth 6.75Gbps
Maximum supported resolution 1920X1080@60Hz and backward compatible
Video interface HDMI-A interface
HDMI interface impedance 100Ω
HDMI cable usage length Less than 5 meters, at 1920X1080@60Hz
Audio Interface 3.5mm stereo audio jack
Audio format 44.1K, 48K, 96K, 176K, 192K
Signal type Stereo
Infrared Infrared interface Standard 3.5MM audio interface
Infrared frequency Standard 20-60KHz
Signal type Digital signal
Infrared transmission direction Reverse transmission
Network port Network cable interface Standard RJ45 interface (568B)
Network cable maximum transmission distance Use Cat6 network cable up to 200 meters






other

 Power supply Power adapter: DC 5V
Maximum power consumption MAX 4W
Operating temperature -5℃ ~ +70℃
Operating humidity 5% ~ 90%
Host size 82*85*17mm
Warranty period 1 year free warranty
