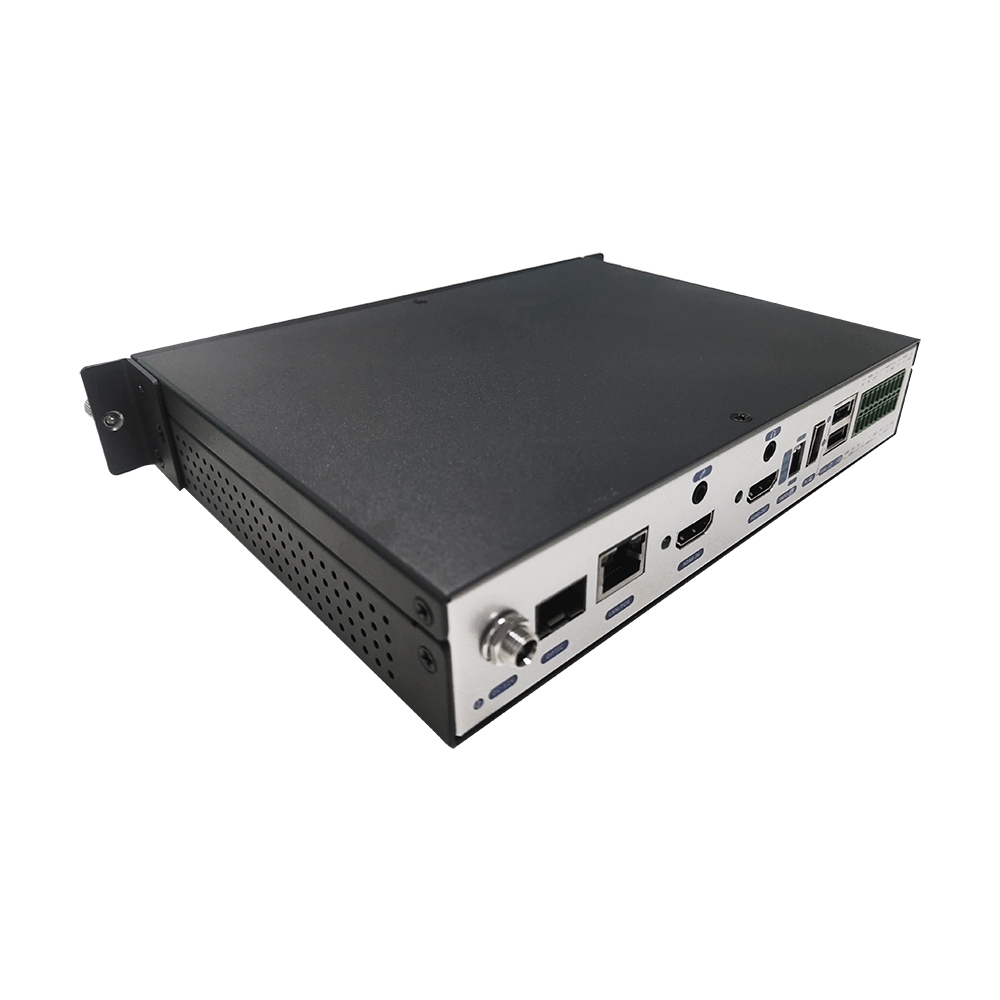

2K60 AV over IP Collaboration System

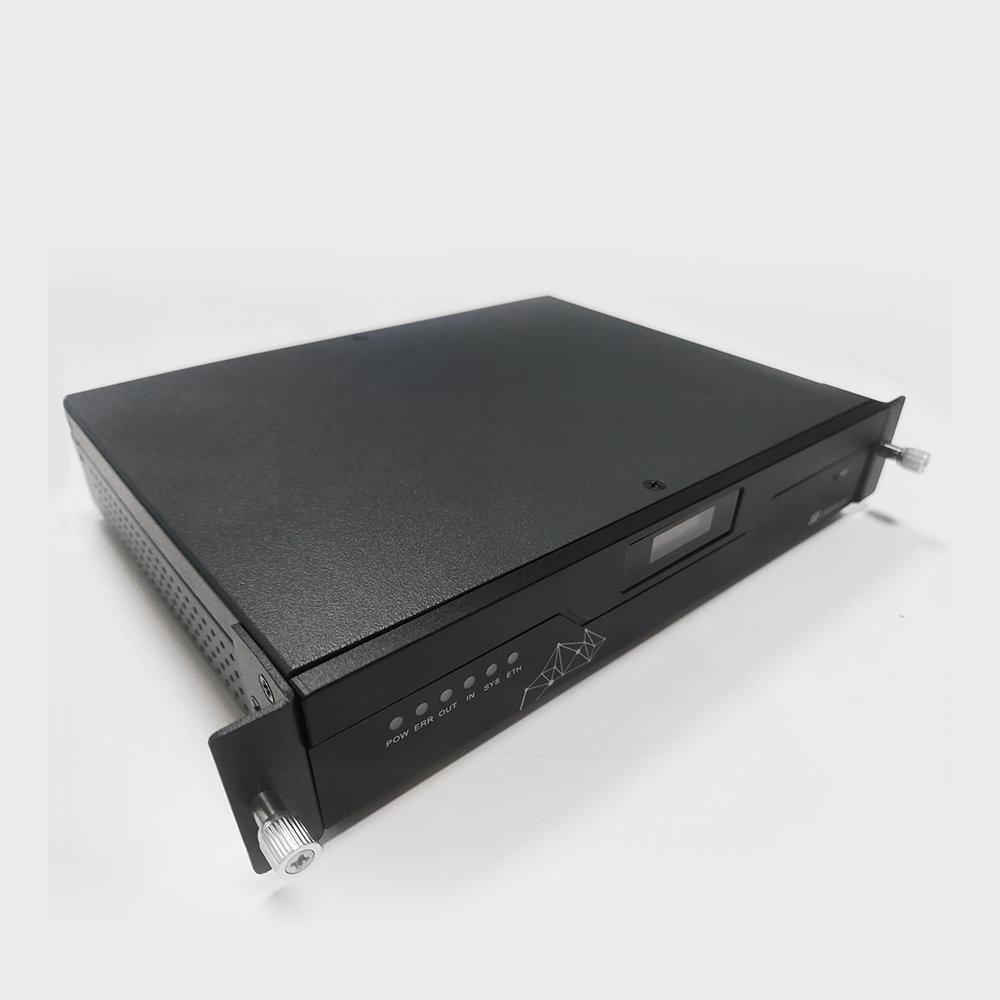

2K60 AV over IP Collaboration System - Image 2
2K60 AV over IP Collaboration System - Image 3

2K60 AV over IP Collaboration System

The MA-X4000S for modern command and control centers, collaborative workspaces, and mission-critical environments. Engineered with a decentralized architecture, it delivers unparalleled flexibility, scalability, and reliability. Experience seamless control over video, audio, and peripheral devices across any network, breaking down geographical barriers and simplifying complex operations.

Request Quote

  • Serverless design allows unlimited node expansion without central controllers；Single node failure doesn’t affect overall system operation；Input/output nodes can be powered on/off without disrupting system functionality。
  • Embedded ARM architecture with H.265/H.264 AI codec chips；End-to-end delay <25ms ensuring real-time responsiveness。
  •  ≥2 USB ports per node for direct computer control via software license
  • Support for Windows, Linux, Android, iOS, and specialized OS (Red Flag, Kylin)
  • Single software platform for all video, audio, and environmental controls
  • Single screen supports 4-9 windows with overlay, roaming, and free splicing
  • Supports multi-terminal simultaneous control with real-time synchronization for multi-user operation.
  • Supports POE or adapter power supply; fanless silent design.
  • Supports one-click screen clearing during annotation.
  • A single software platform provides unified management for all devices in the system.
  • Supports synchronous and asynchronous audio transmission; uses high-quality AAC codec with no noise interference.
  • Client devices can mirror Display 1 to Display 2 at equal scaling, enabling display sharing and workstation collaboration.
  • USB ports support data passthrough and USB drive reading
  • Supports local loop output with automatic main/backup signal switching. Loop-out output fully matches the original input signal.
  • Supports SFP + RJ45 hot-backup with switching time under 2 seconds. No black screen or flickering during switchover. Dual main/backup links occupy only one IP address, saving resources.
  • Supports offline designer interface customization, B/S architecture interface configuration, and synchronized configuration with tablet APP.
  • Supports cross-device interactive control, enabling one tablet to directly control multiple computers.
  • Output nodes support decoding RTSP, ONVIF, and other streaming protocols; can directly decode IPC network camera feeds to the screen.
  • Supports same-source audio and video synchronized output.
  • Supports pre-layout editing on the control terminal without affecting actual screen display.
  • Supports volume adjustment with audio-video lip-sync, mute, and real-time volume control.
  • The platform can simultaneously manage video, audio, environment, security, conferencing, storage/recording systems.
  • Supports customized UI design via programmable control interface designer for project-specific customization.
  • Key scene elements can be pre-arranged and pushed on screen with one-click switching.
  • Supports flexible screen splicing modes based on user requirements.
  • Supports windowing, roaming, splicing, overlay, cross-screen display, and segmentation across video walls. No tearing, desynchronization, or flicker during signal switching.
  • Supports pre-layout of screen elements on the control terminal without affecting current display.
  • Supports full-screen mode, single-screen mode, and roaming mode.
  • Supports multi-user and permission authorization. Each operator can be assigned differ
  • Supports visual voice intercom between workstation nodes (optional).
  • Supports fingerprint authentication login with multiple admin/operator profiles (optional).
  • Supports input source multi-window preview and full-screen return display. Supports controlling peripheral devices (PTZ cameras, video wall power, audio volume, lighting, etc.) from PC or iPad.
  • Supports use on Windows all-in-one touch devices and tablets.
  • Supports transmission over a single gigabit Ethernet cable or optical fiber: at least 20× 4K@30Hz streams, or 50× 1080p@60 streams, or 10× 4K@60Hz streams.
  • Output nodes support custom output resolutions up to 2K@60Hz (1920×1080@60Hz) and are compatible with LED control systems.
  • Each window supports ≥1080p@60Hz. Max layout capability: – 16×30 splicing at 2K input – 32×60 splicing at 4K input
Input Node Output Node Workstation Collaboration Node
Function



  Encode AV signals and transmit KVM streams Supports video wall splicing, windowing, roaming, and overlay Encodes and transmits audio, video, keyboard, and mouse signals;Supports USB 3.0 / 2.0 passthrough
Specifications Interface type: HDMI (supports loop-out)

Resolution: Compatible with 2K@30Hz and below

Audio transmission: 3.5 mm audio input & output

Control method: Ethernet (network port)

Codec formats: Intelligent H.265, H.265+

Power options: 12V DC power and PoE

 Interface type: HDMI

Supported screens: Compatible with LED, DID, LCD, and DLP video walls

IPC access: Supports IPC-BOX concurrent access

Audio/Video: Supports synchronous or asynchronous switching

Resolution: Compatible with 2K@60Hz and below

Audio transmission: 3.5 mm audio input & output

Control method: Ethernet (network port)

Free windowing: Supports multi-window splicing, roaming, overlay, and zoom display

Power options: 12V DC power + PoE

Multi-view split modes: 1/4/9/16 split display

 Interface type: HDMI

Resolution: Compatible with 2K@30Hz and below

Audio transmission: 3.5 mm audio input & output

Control method: Ethernet (network port)

Keyboard/Mouse interface: 2×USB Type-A for KVM control via mouse and keyboard

Power options: 12V DC power + PoE


Video Input Interface Type HDMI (Type-A Female) Video Output Interface Type HDMI (Type-A Female)

Max. Resolution		 Supports up to 5120×1080@60Hz Channels 1
Signal Detection Auto-detect Audio Output Type Line out / HDMI Embedded Audio
Channels 1 Channels 1
Audio Input Type Line in / HDMI Embedded Audio Loop-out HDMI Loop-out Supported (from HDMI Input)
Channels 1
Network Interface 1 x RJ45 (2.5G/5G/10G Base-T capable, PoE supported) Control Protocols TCP/IP, UDP
IP Assignment Manual Configuration (Static IP) Software Dedicated Configuration Software (Windows), Web Client, App
PoE Support Supported USB Interfaces 2 x USB 2.0 (Supports peripheral connection & KVM)
Video Processing Max. Windows 4 simultaneous windows System Firmware Update Supported
Color Depth 16bit Configuration Configuration backup/restore supported
Image Quality Adjustable (Low, Medium, High, Very High) Preview On-screen preview supported
