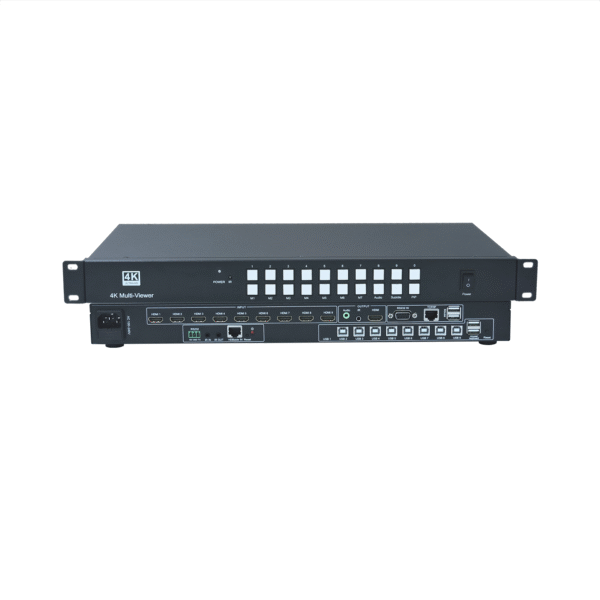

4K 9-View Multiviewer With KVM
4K 9-View Multiviewer With KVM - Image 2
4K 9-View Multiviewer With KVM - Image 3
4K 9-View Multiviewer With KVM - Image 4

4K 9-View Multiviewer With KVM

The Multiviewer combines up to 9 HDMI sources into a single high-definition output, allowing all signals to be displayed on one screen. supporting 8×1080P + 1×4K@30Hz input.Built-in KVM function lets you control up to 8 sources with one keyboard and mouse.Perfect for conferencing, education, exhibitions, and financial trading.

Request Quote

  • Supports 8×1080p HDMI inputs + 1×4K@30Hz HDMI input (all with embedded audio)
  • 1× HDMI output up to 4K@60Hz, with embedded audio
  • Multi-view modes: 9-split, 8-split, 6-split, 4-split, full screen

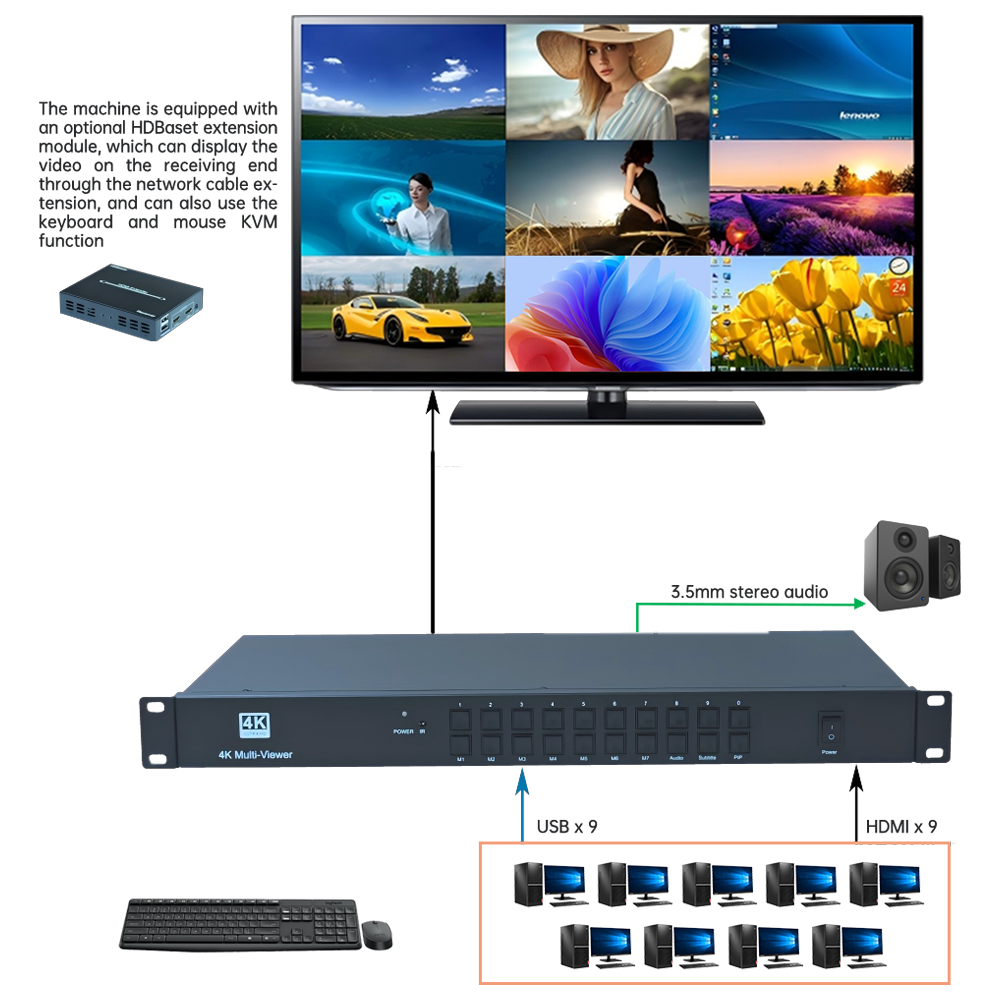

  • HDBaseT extension up to 100m over CAT cable, with dual HDMI mirrored output + KVM remote control
  • Picture-in-picture (PiP) on any window with free size and position adjustment
  • Supports on-screen text overlay with adjustable font size, position, and scroll/static options
  • Built-in fixed display layouts (non-customizable) with mode save & recall
  • 5mm analog audio output; supports audio follow or independent audio switching in multi-view mode
  • Multiple control methods: IR remote, keyboard/mouse, RS232, Web GUI, front panel buttons
  • Hotkey switching and mouse crossover supported in 8-split mode
  • Seamless switching between single and multi-view with no black screen
Item Specifications
HDMI input
Input interface 4× HDMI (with embedded audio), 1× DP, 4× USB (PC control)
Resolution HDMI 3/4 + DP: up to 3840×2160@60Hz; HDMI 1/2: up to 3840×2160@30Hz; backward compatible
Color depth 24-bit, 16.7 million colors
POP, PIP mode Fixed pattern
Output
Output interface 1× HDMI (with embedded audio), 2× USB (for keyboard/mouse)
Output resolution 3840×2160@60Hz, 3840×2160@30Hz, 3840×1080@60Hz, 2560×1440@60Hz, 1920×1080@60Hz, 1280×720@60Hz optional;
Colour depth 24 bits, 16.77 million colors
Control mode Keyboard hotkeys, front-panel buttons, IR remote, RS-232
Electrical characteristics Input voltage: 12V AC voltage
Product size 288mm (L) × 123mm (W) × 30mm (H)(0.75KG)
Package size 450mm × 250mm × 95mm(1.85kg)
Weight 0.75 KG
Power consumption Maximum 15W
