| Power | |
| Input | 12VDC 1A max, 12W Max |
| Camera | |
| Image Device | Sony 1/2.3”
Back-illuminated and stacked Exmor R CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| Aperture/IRIS | F1.6-2.8, F1.67-3.67, F1.6-4.3 |
| Electronic Shutter | AUTO, 1/25(30), 1/50(60), 1/90,1/100, 1/120, 1/125,1/180, 1/250, 1/300, 1/500, 1/600, 1/725, 1/1000, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 |
| LensZoom Ratio | 12x, 18x, 25x |
| Focal Length | f3.4-40.3mm, f5.5-99mm, f5.3-130mm |
| FOV(D/H/V) | 12x, Wide:78.5°/70.8°/42.7°, Tele:7.4°/6.4°/3.6°
18x, Wide:63.1°/51.9°/39.7°, Tele:3.7°/3.0°/2.2° 25x, Wide:67.9°/55.0°/41.6°, Tele:2.8°/2.3°/1.7° |
| Gamma Control | 9 options |
| Noise Reduction | 2D/3D, 8 levels |
| White Balance | Auto, One Push, R/B Gain, Color Temp, Lock |
| Color Temp. | 3000-6500K |
| Focus | Auto/Manual/One Push with AF Lock |
| Focus Zone | 6 zones and Point Focus |
| TOF-assisted focus | 12x only |
| Exposure | AE/AAE/SAE/M with AE lock |
| Mirror/Flip | Automatic/Manual |
| Style | 7 options |
| Control | English/Chinese IR OSD Menu |
| Flicker Cancel | Auto/50/60 |
| ND/UV/PL Mount | 58mm |
| Video : | |
| HDMI Out | 1.4b, 4:2:2(YCbCr) |
| SDIOut | 3G SDI, 800mVpp, 75ohm, 4:2:2(YCbCr) ，720p/1080p : NDI | HX, HX2, HX3 (NDI 5.5, Upgradeable) |
| NDI | 1.4b, 4:2:2(YCbCr) |
| Video Encoder | H.264 HP/MP/BP, H.265 MP, MJPEG |
| Resolution | 4K2160p25/30, 1080p25/30/50/60,1080i50/60, 720p50/60 |
| Bit Rate | Max. 50Mbits/s, adjustable |
| Frame Rate | 24/25/30fps, 50/60fps for 1080/720p |
| Codec | H.264/265 |
| Rate Control | CBR/VBR |
| Live Preview | Web, HDMI and SDI |
| OSD | WYSIWYG editor |
| Audio | |
| Sampling | 32, 44.1, 48KHz |
| Encoder | AAC, MP3, 16bit |
| Bitrate | 32-192kbps |
| Line Input | 0.7VRMS，20K, 2CH, AGC |
| Microphone | Dual MIC omni-direction, 2.0V bias |
| Source | Line In, MIC |
| Audio Output | HDMI, SDI and NDI embedded |
| Streaming | |
| Streaming Out | RTMP/SRT/RTP/UDP/RTSP/MJPEG |
| Bit Rate | Max. 50mbits/s, adjustable |
| NDI® | NDI® | HX3/HX2/HX |
| Main Video Stream | Up to 4K30 |
| Secondary Stream | Up to 720p |
| Record Format | mp4, mov, ts |
| Storage | TF, USB and NAS |
| Rotation | Native vertical streaming |
| UVC | MJPEG up to 1080p60, H.264 up to 4K30 |

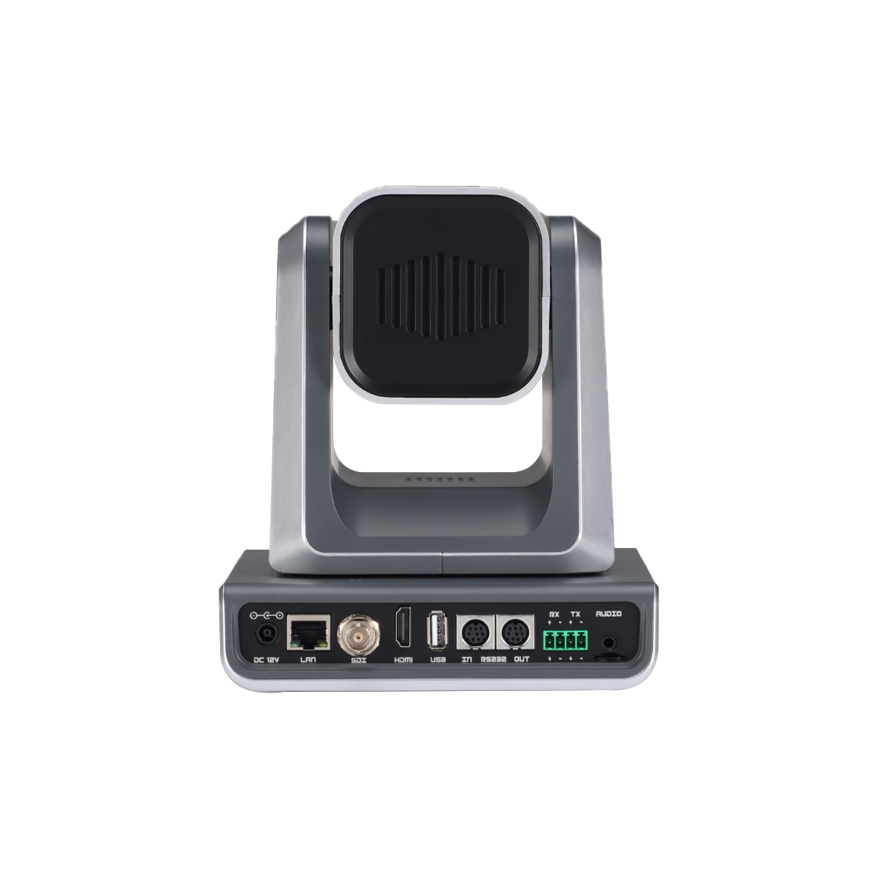

| Interface | |
| Power | 1 x JEITA,DC IN |
| HDMI Output | 1 x TYPE A, Receptacle |
| SDI Output | 1 x BNC, Female |
| RS485/422 | 1 x Phoenix Port 4, 3.81 pitch, Tx/Rx |
| VISCA | 2 x MDIN-8 Female, Tx/Rx |
| Audio In | 1 x 3.5mm Jack |
| Network | 1 x RJ45, Gigabit, PoE |
| IR | 1 x Remote Control |
| Tally | 1 x Auto/Manual, Top-Front |
| Visible | 2 x LED, bi-color Power and Status |
