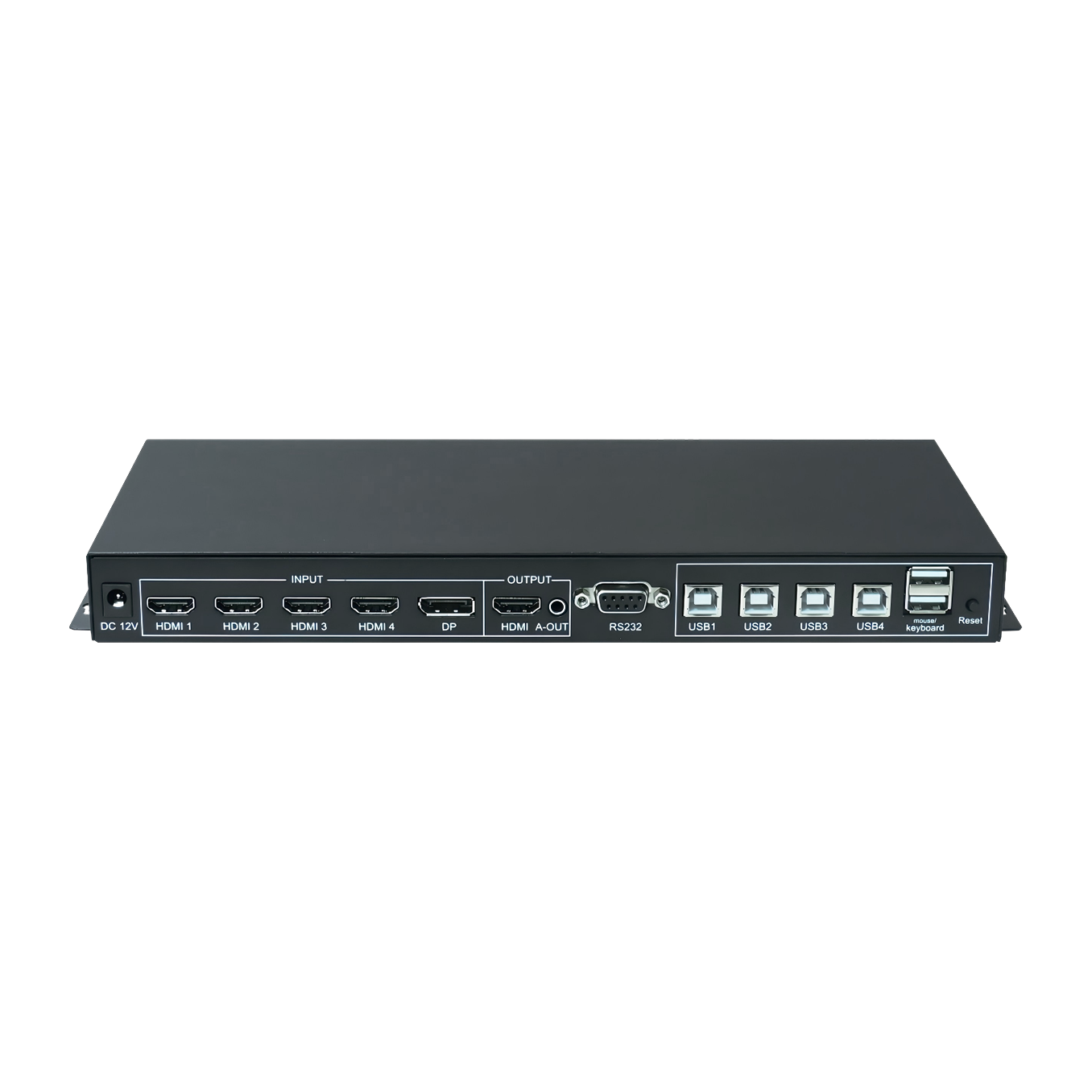

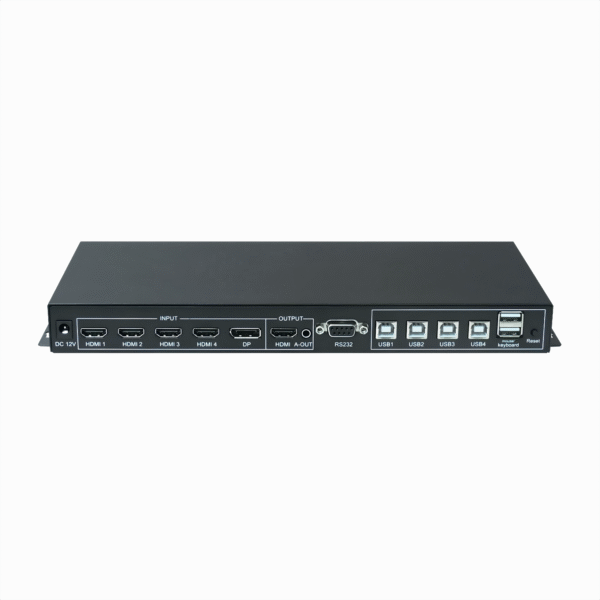

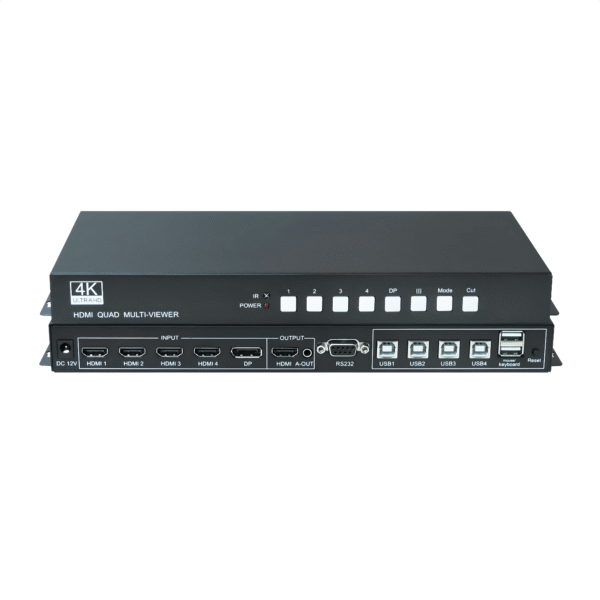

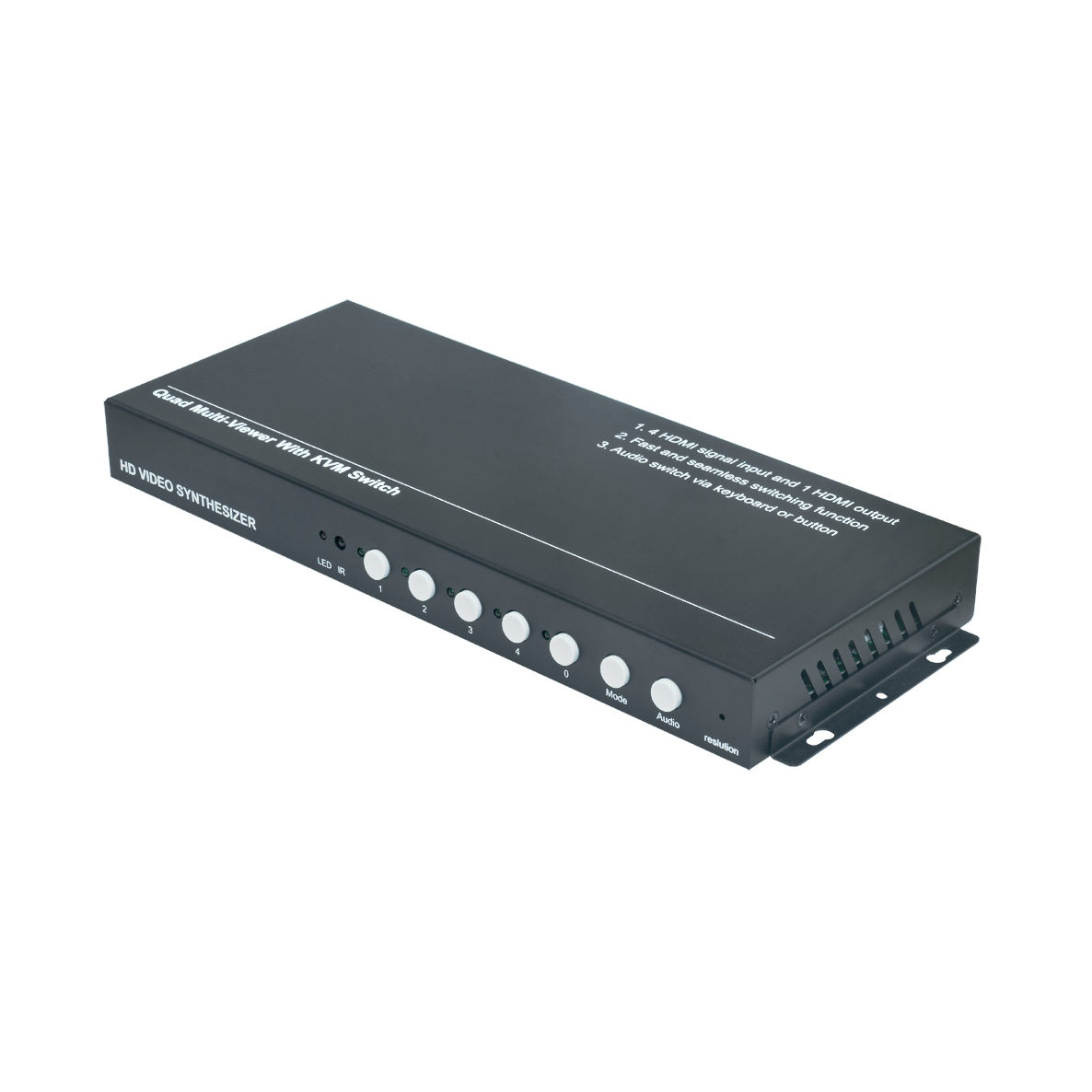

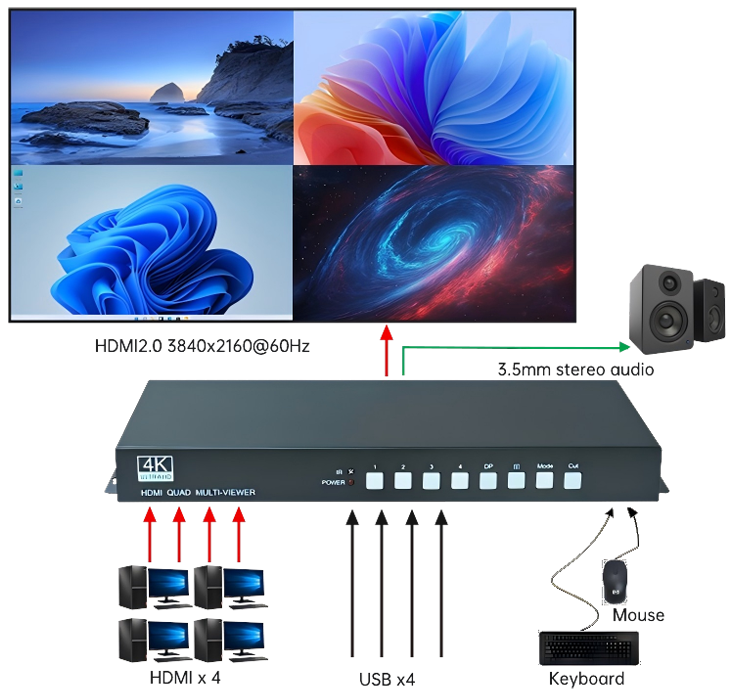

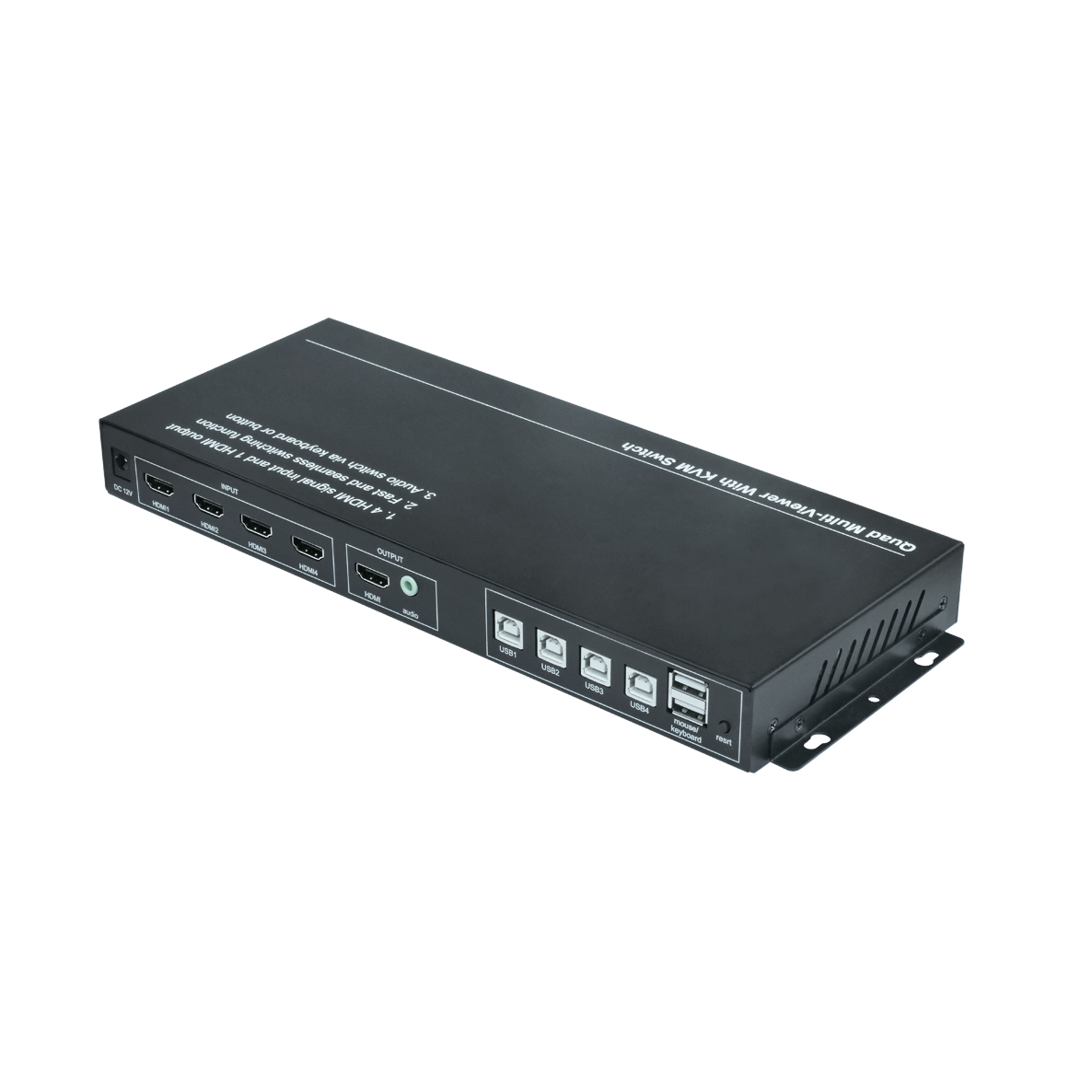

The TK-MT4000 is a professional 4K quad-view splitter designed to display up to four 4K signals simultaneously on a single 4K display. It combines powerful multi-view functionality with KVM switching and audio control, allowing users to seamlessly switch between display modes and audio sources using simple keyboard hotkeys.
Engineered for versatility, the TK-MT4000 is ideal for video conferencing, education, exhibitions, financial trading, and any application where multiple high-resolution signals need to be viewed on one display.
| Item | Specifications |
| HDMI input | |
| Input interface | 4× HDMI (with embedded audio), 1× DP, 4× USB (PC control) |
| Resolution | HDMI 3/4 + DP: up to 3840×2160@60Hz; HDMI 1/2: up to 3840×2160@30Hz; backward compatible |
| Color depth | 24-bit, 16.7 million colors |
| POP, PIP mode | Fixed pattern |
| Output | |
| Output interface | 1×HDMI (with embedded audio), 2×USB (for keyboard/mouse) |
| Output resolution | 3840×2160@60Hz, 3840×2160@30Hz, 3840×1080@60Hz, 2560×1440@60Hz, 1920×1080@60Hz, 1280×720@60Hz optional; |
| Colour depth | 24 bits, 16.77 million colors |
| Control mode | Keyboard hotkeys, front-panel buttons, IR remote, RS-232 |
| Electrical characteristics | Input voltage: 12V AC voltage |
| Product size | 288mm (L) × 123mm (W) × 30mm (H)(0.75KG) |
| Package size | 450mm × 250mm × 95mm(1.85kg) |
| Weight | 0.75 KG |
| Power consumption | Maximum 15W |
