The HDMI Seamless Switching Matrix is a high-performance ultra-HD video signal switcher, supporting 4K input, output, seamless switching, and splicing. It is designed for professional AV applications requiring stability, flexibility, and high-quality signal management.
16×16 HDMI Matrix – Supports 16 inputs to 16 outputs with seamless, fast switching.
4K Ultra HD – HDMI 2.0 input up to 3840×2160@60Hz; HDMI 1.4 output up to 3840×2160@30Hz.
Splicing Function – Enables video wall display setups.
Audio De-embedding – Supports extracting audio from output channels.
Flexible Resolution – Preset, auto, and user-defined resolutions supported.
Scene Management – Save and recall up to 30 scenes.

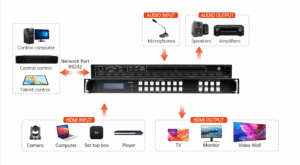

Control Options – RS232/RS485, LAN, web browser, front panel, remote control, relay.
Signal Management – EDID read/write, signal detection, backup (N+1), and custom output modes (black screen, blue screen, off).
Advanced Functions – Audio mute, image freeze, black screen, and status reporting for external control integration.
Stable & Reliable – Built-in power module, power-off memory, standard 19-inch rack mount design.
