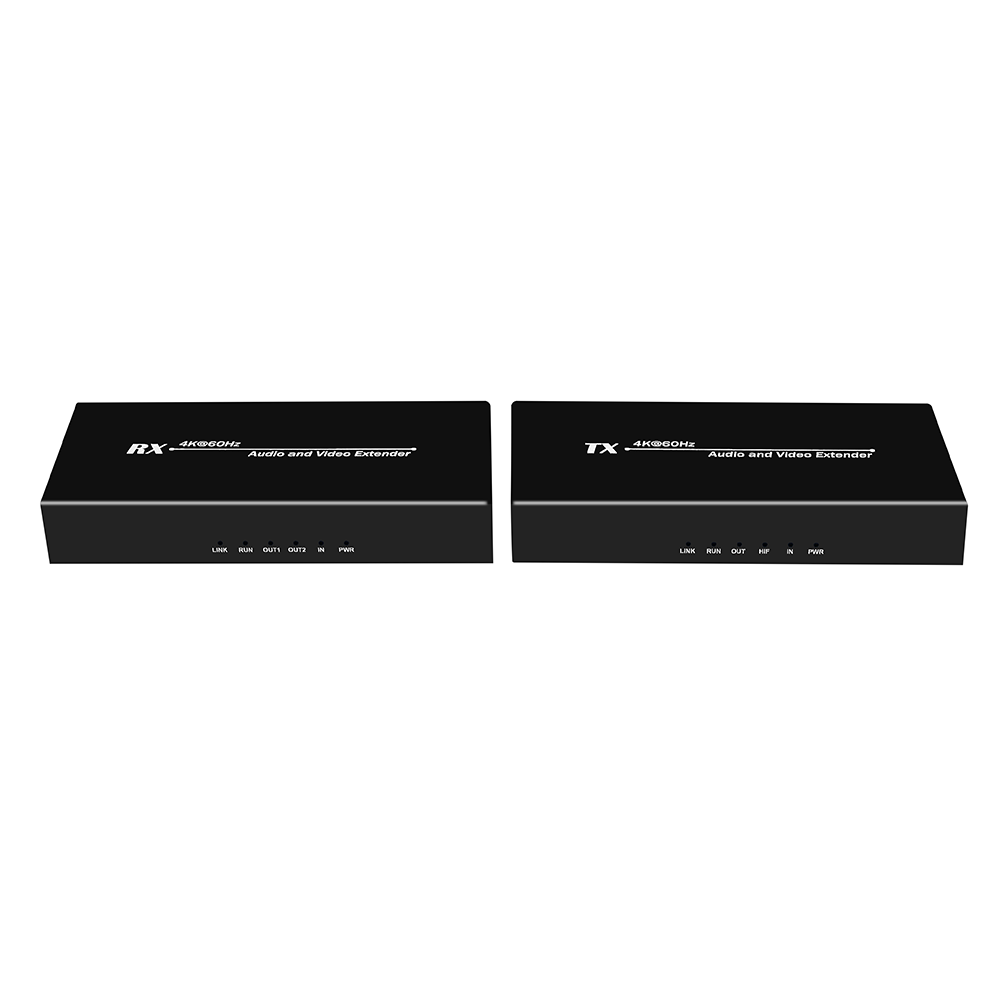

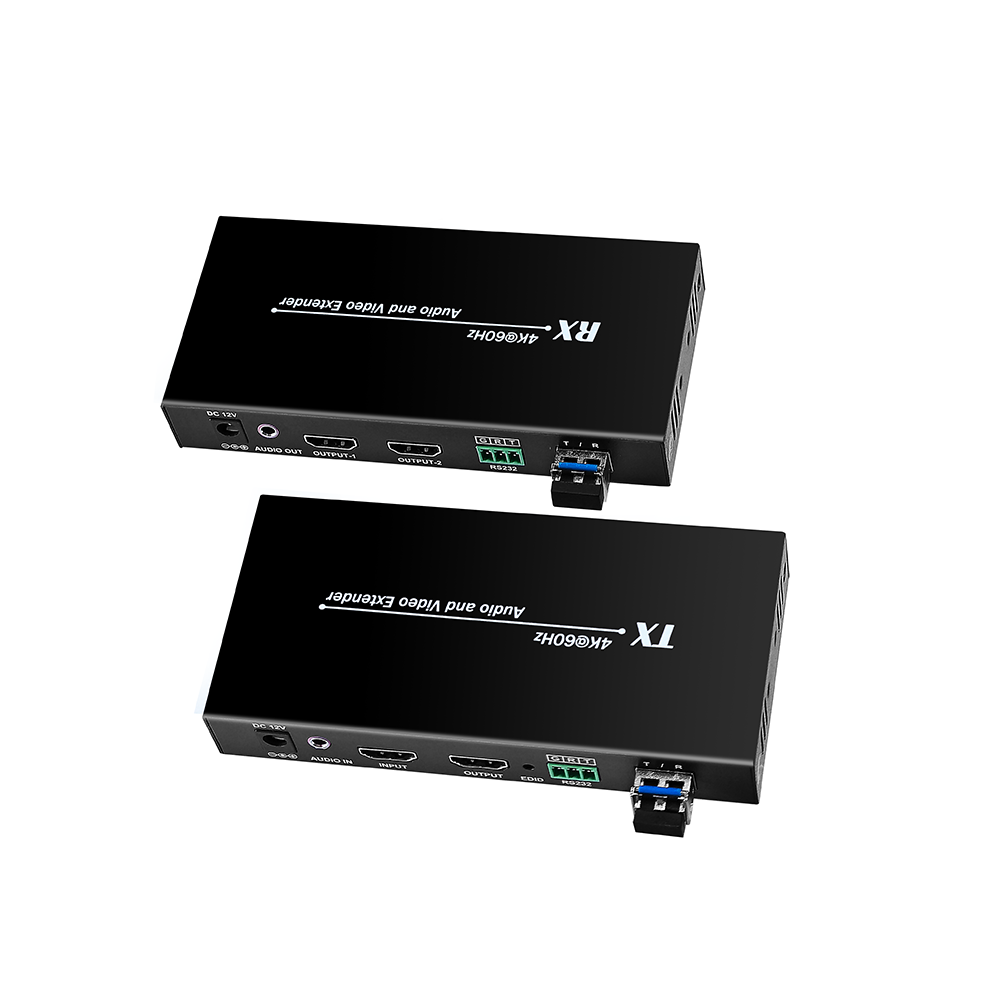

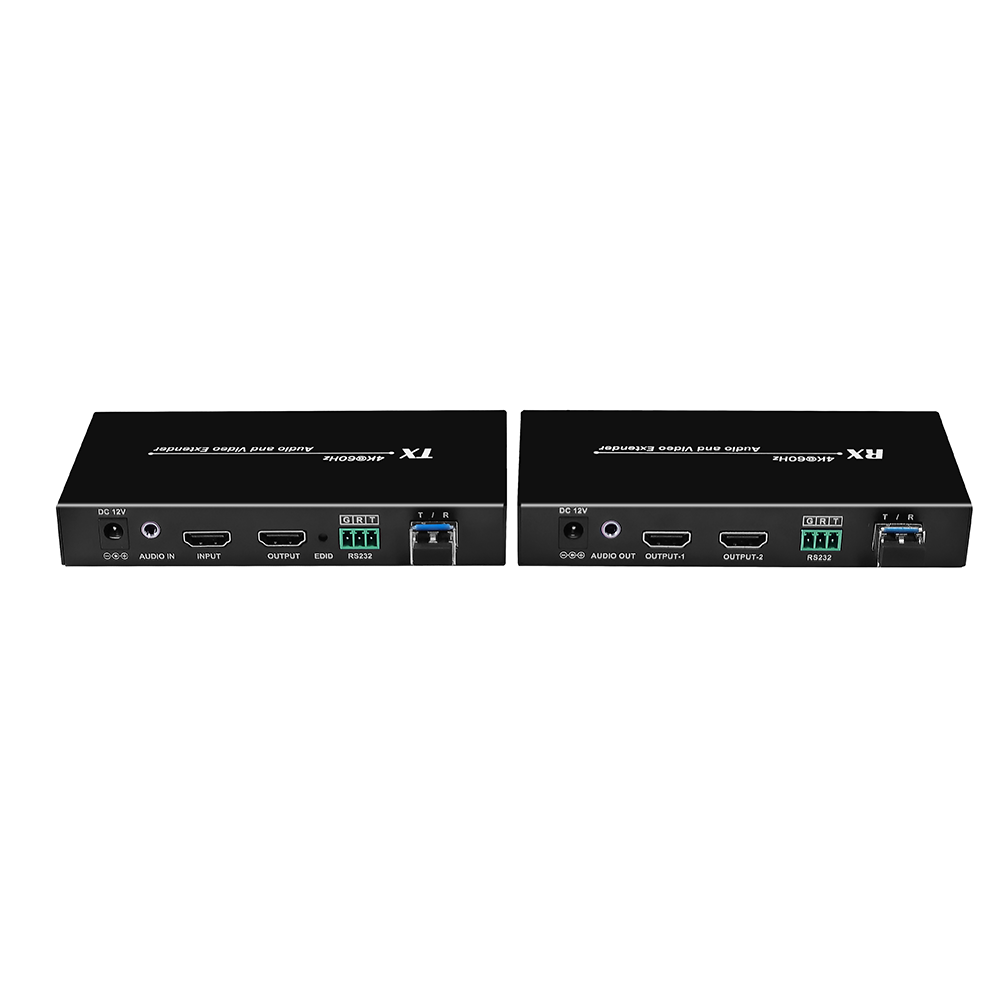

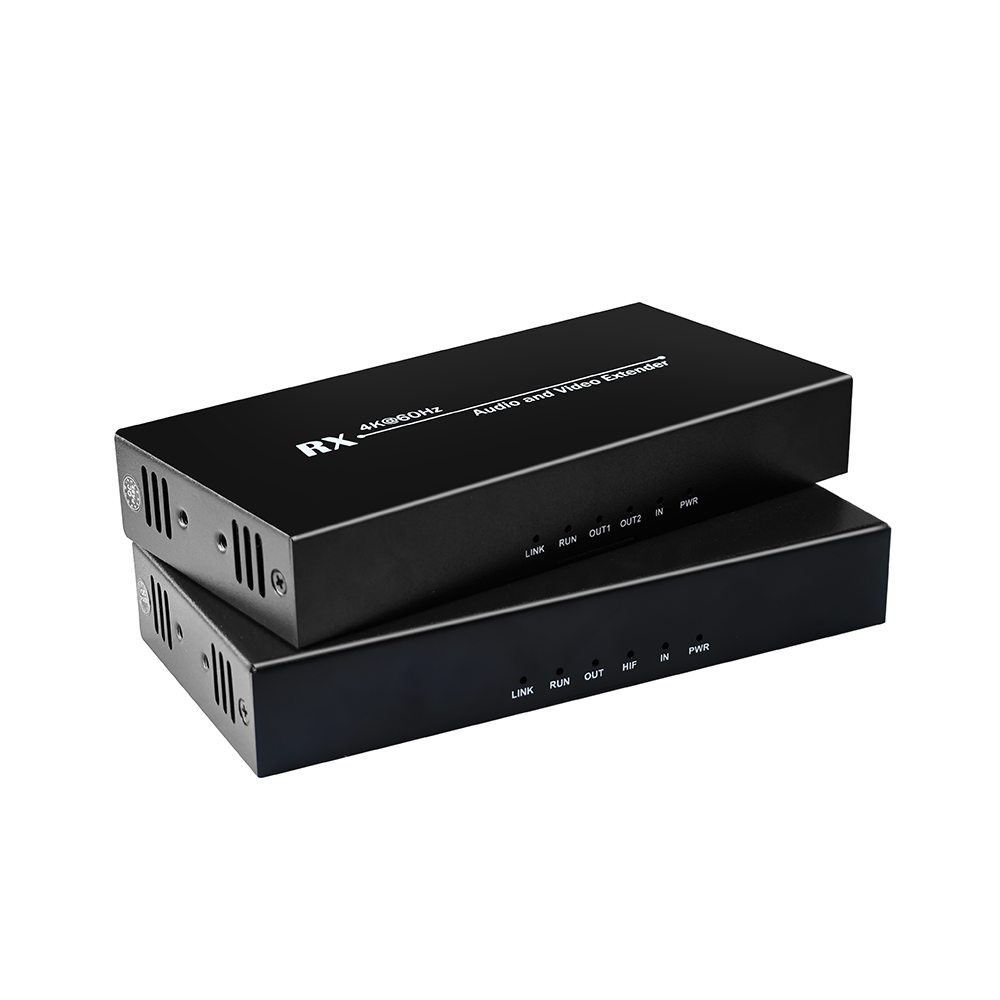

Designed for long-distance, reliable, and cost-effective AV distribution, this extender delivers uncompressed HDMI audio and video up to 4K@60Hz over fiber, with transmission distances reaching 10 km. Perfect for conference rooms, broadcasting, education, digital signage, and film production.
|
video frequency |
Support agreement | HDMI 2.0; HDCP 2.2 |
| HDMI, and the pixel bandwidth | 600 MHz, full number | |
| HDMI, the interface bandwidth | Total bandwidth of 18 Gbps | |
| Maximum support for the resolution | 3840X 2160@60Hz and downward compatible | |
| Video interface | The HDMI-A interface | |
| The HDMI interface impedance | 100Ω | |
| HDMI length | Less than 5 m, at 1920X1080@60Hz | |
| RS232 | joggle | DB9 |
| sense | Unidirectional transmission (single fiber); bidirectional transmission (double fiber) | |
| Baud rate | Adaptive, up to 1,15,200 bps | |
| data bit | Eight | |
| audio frequency | joggle | 3.5mm stereo audio socket |
| Audio format | 44.1K,48K,96K,176K,192K | |
| Signal type | stereophonic | |
| fibre-optical | Fiber interface | External SFP module-LC interface |
| Fiber type | single mode | |
| wavelength | Single-mode mode at 1,310 nm | |
| Interface bandwidth | 18Gbps | |
| The maximum transmission distance is recommended | At 3,840 X 2160 @ 60 Hz;
Single-mode standard equipment: 10KM |
|
|
other |
source | Power supply adapter: DC 12V |
| maximum power dissipation | MAX 10W | |
| working temperature | -5℃ ~ +70℃ | |
| Working humidity | 5% ~ 90% | |
| Host size | 142*67*23mm | |
| defects liability period | One year free warranty |
