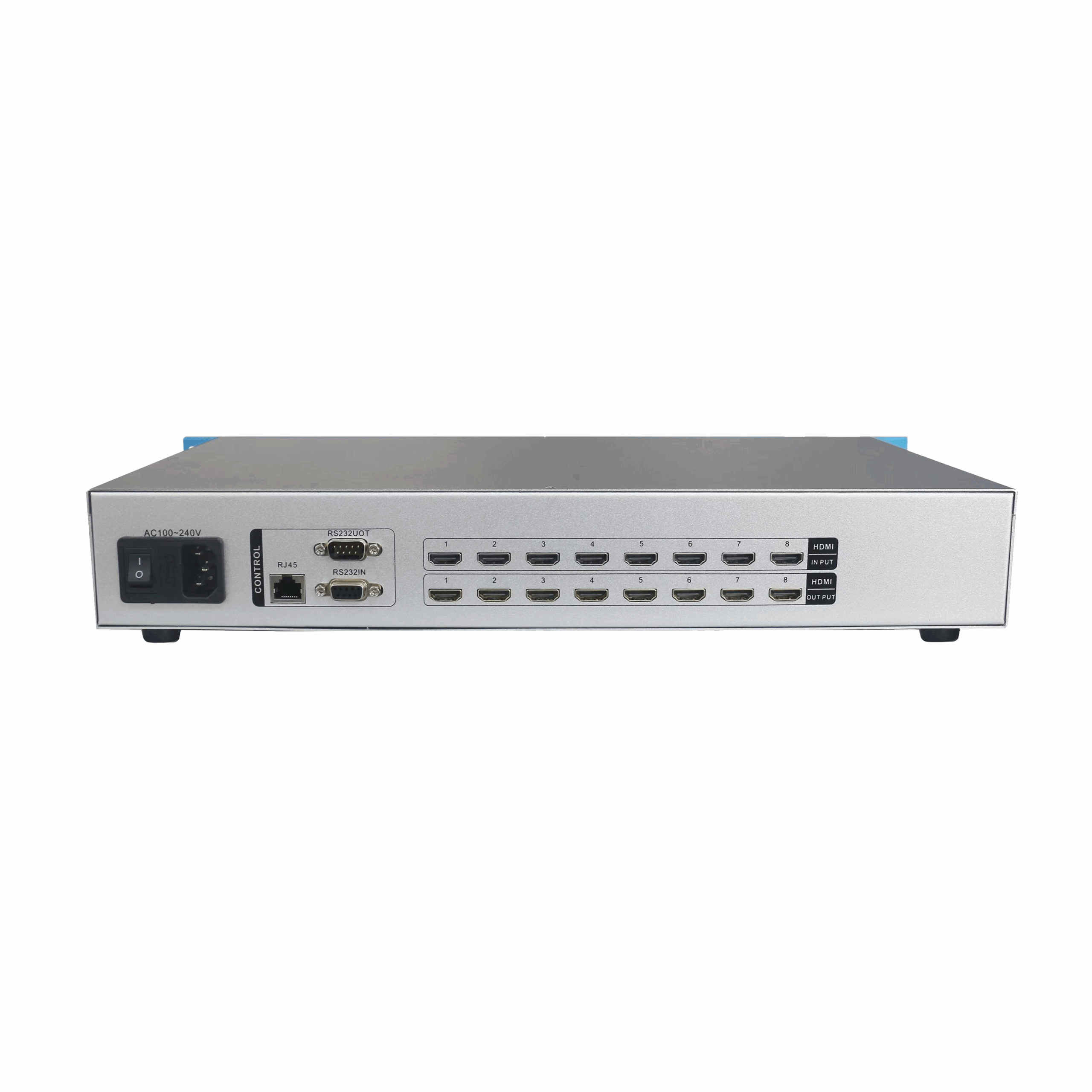

4K60 Fixed Matrix Switch 8x8
4K60 Fixed Matrix Switch 8x8 - Image 2

4K60 Fixed Matrix Switch 8×8

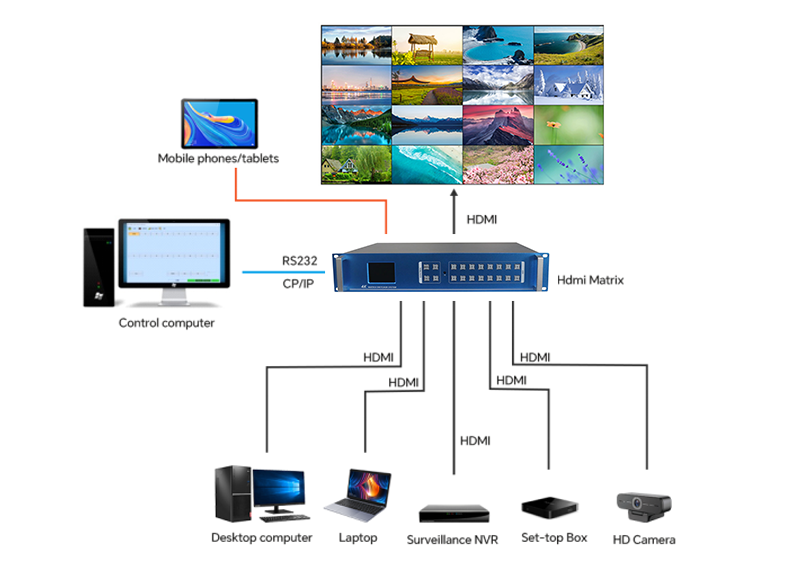

Our 4K@60Hz HDMI Matrix is a high-performance solution for routing multiple high-definition video signals. It supports full 4K input and output, allowing you to send any source to any display with perfect image fidelity.

Request Quote

  • All digital zero compression digital switching
  • Transmission resolution 3840*2160@60Hz HD ultra HD digital pixels
  • Support mobile APP control matrix
  • Network control port, convenient remote control, real-time display of input and output status;
  • Through the splicing software, to achieve the signal splicing. You can define the scene and call the scene through the splicing software.
  • RS-232 serial port control, support serial port loop output to large screen
  • With power failure memory function
  • Front panel LCD status display report
  • Convenient front panel access operation, can prestore multiple group switching mode
  • Power failure protection function
  • Video input port with clock/data recovery and reorganization
  • Can monitor the input status of each input channel in real time
  • Optional dual power supply redundancy configuration, ensure the stability and reliability of thepower supply
  • HDMI input and output ports support HDCP protocol
Electrical parameters
Signal interface HDMI-A
HDMI version HDMI2.0
Bandwidth 300MHz
Maximum resolution 3840×2160@60Hz backward compatible with all resolutions
Bit Clock Jitter (Clock Jitter) <0.15 Tbit (1080p@60)
Bit rise time (RiseTime) <0.3Tbit (20%- 80%)
Bit drop time (RiseTime) <0.3Tbit (20%- 80%)
Maximum transmission delay 5nS
Signal strength T.M.D.S +/- 0.4Vpp
Differential impedance 100 ohms
PC control
Serial control interface RS-232, 9-pin female D interface
Baud rate and protocol Baud rate: 9600, Data bit: 8, Stop bit: 1, none parity bit
LAN control interface RJ-45 female interface
Power Supply
Maximum  power consumption 30W
Power adapter AC170~245V@50~60HZ
