Compact, reliable, and low-power Codecs with 24/7 operation—supporting streaming, editing, recording, decoding, and playback for applications in live streaming, IPTV, education, conferencing, and surveillance.

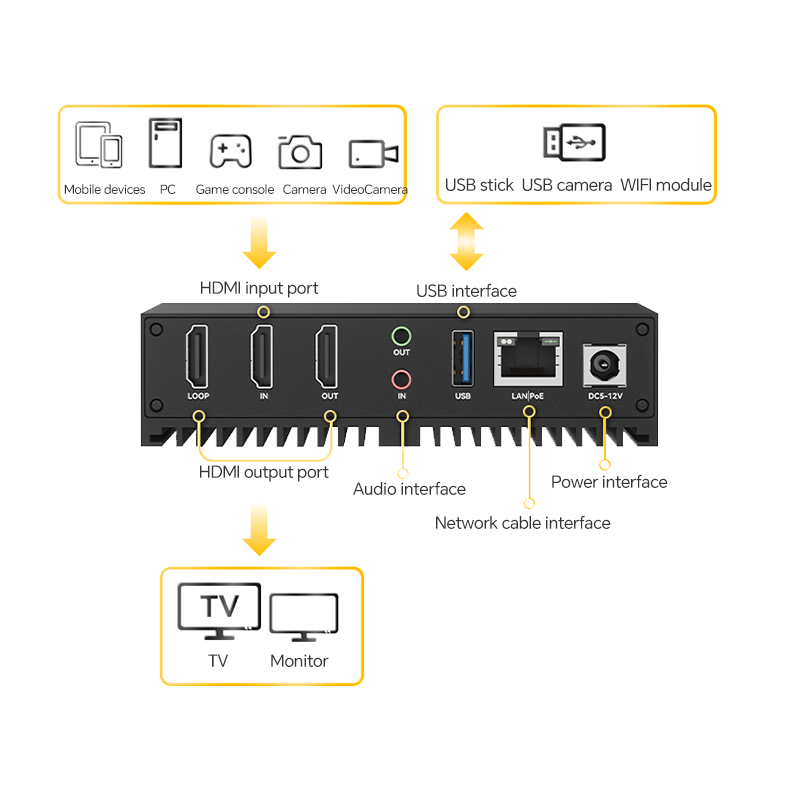

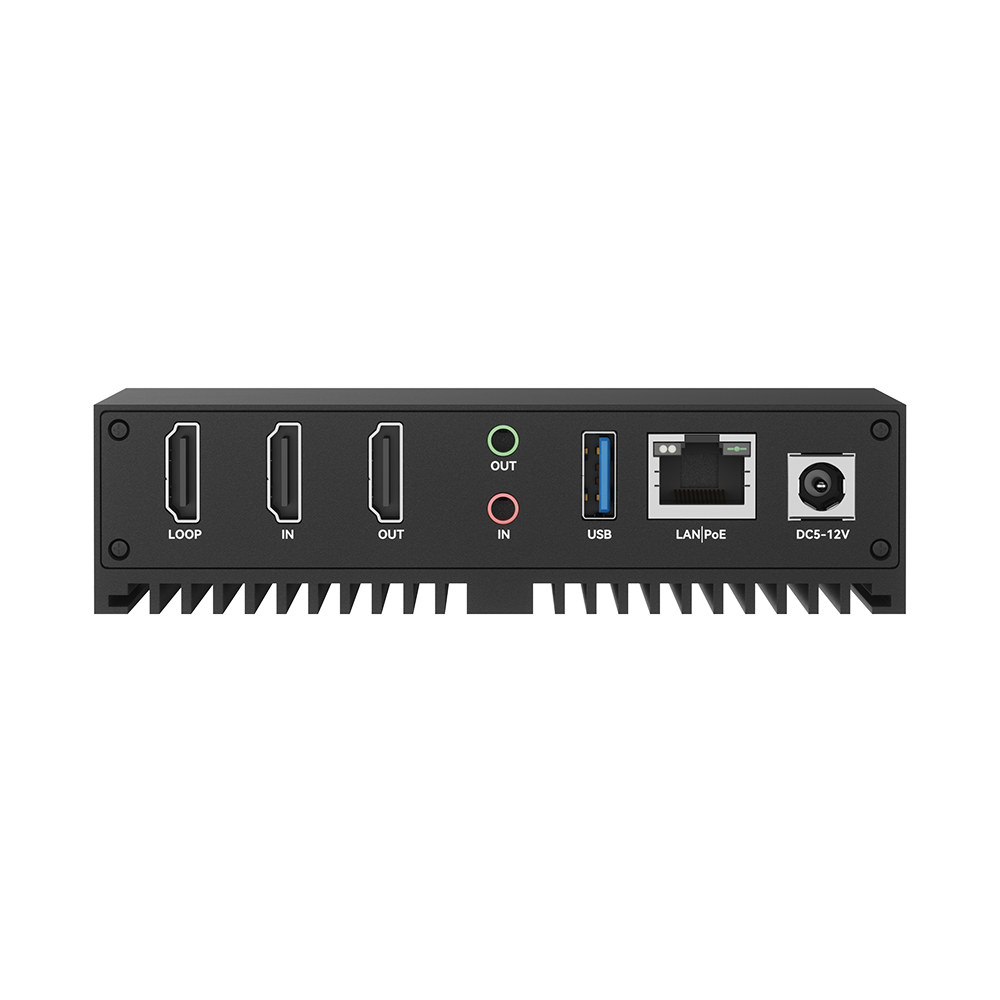

| Video Interface | |
| HDMI Input | HDMI 2.0, supporting up to 4K@60fps |
| HDMI Loop-through Output | Supports up to 4K@60fps |
| HDMI Output | Supports up to 4K@60fps |
| Supported Input Resolutions | 4K@60, 4K@30, 1080p, 720p, 1080i, 1600×1200, 1440×900, 1366×768, 1280×1024, 1024×768, 800×600, 640×480, and others |
| Audio Interface | |
| HDMI Input | Stereo, up to 48 kHz sampling rate |
| HDMI Output | Stereo, up to 48 kHz sampling rate |
| Line Input | 3.5 mm stereo line-in |
| Line Output | 3.5 mm stereo line-out |
| Encoding & Decoding Performance | |
| Audio Encoding Formats | AAC, MP3, MPEG2, PCMA, OPUS |
| Audio Sampling Rates | 48 kHz, 44.1 kHz, 32 kHz, 16 kHz, 8 kHz |
| Video Encoding Formats | H.264 Baseline / Main / High Profile; H.265 Main Profile; MJPEG / JPEG Baseline |
| Encoding Capability | 1× 4K60 / 2× 4K30 / 4× 1080p60 / 8× 1080p30 |
| Decoding Capability | 1× 4K60 / 2× 4K30 / 4× 1080p60 / 8× 1080p30 |
| Encoding Frame Rate | Adjustable from 1–60 fps |
| Maximum Bitrate | 160 Mbps per channel |
| Bitrate Control | CBR / VBR / AVBR / FIXQP |
| Network Specifications | |
| Ethernet | 10/100/1000M RJ45 Ethernet port |
| Wi-Fi | Optional external Wi-Fi module |
| 4G/5G Module | Expandable via USB interface |
| Supported Protocols | RTSP, RTMP, HTTP, HLS, UDP, Unicast, Multicast |
| NDI | Supports NDI HX (license required) |
| SRT | Supported |
| GB28181 | Supports transmission |
| ONVIF | Supports both transmission and reception |
| RTMPS | Supported |
| General Specification | |
| Power Supply | DC-12V 2A |
| Power Consumption | < 15W |
| Operating Temperature | 0°C to 70°C |
| Dimensions (L×W×H) | 129 × 104 × 34 mm |
| Net Weight | 447 g |
