4K60 Seamless Splicing Matrix Switch(8×8)

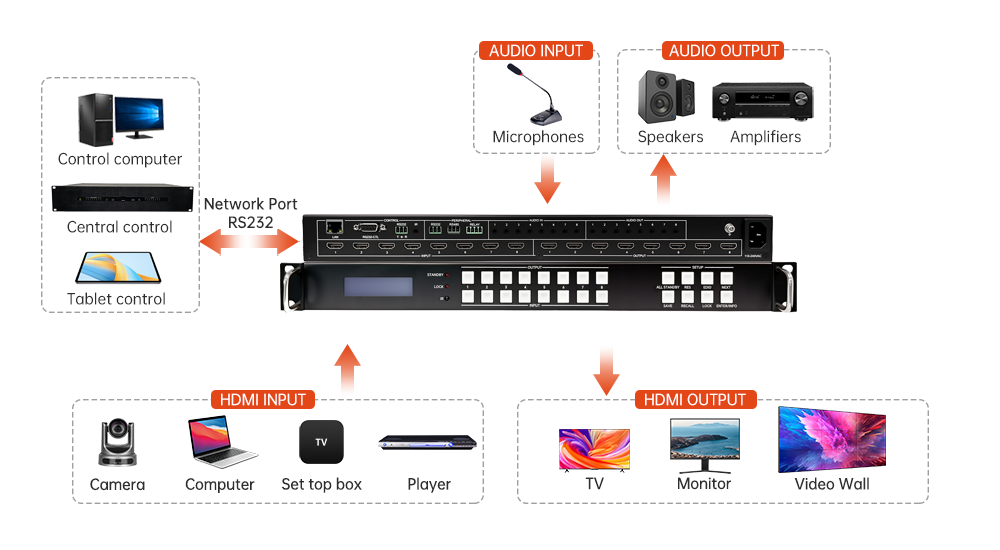

This 8×8 matrix supports 4K@60Hz input, output, switching, splicing, and windowing, delivering seamless performance for control rooms, conference halls, broadcasting centers, and large-scale displays.

Request Quote

  • Seamless Switching – 8 inputs to 8 outputs with ultra-fast transition
  • Video Wall Ready – supports splicing and 180° rotation
  • Flexible Windowing – up to 4 windows simultaneously
  • True 4K Support – HDMI 2.0, resolution up to 3840×2160@60Hz
  • Audio Embedding & De-embedding – input audio insertion, output audio extraction
  • Adaptive Resolution – preset, auto, and custom output modes; optimized for LED walls
  • Reliability Built-In – internal power supply, power-off memory, and redundancy features
  • Multiple Control Options – RS232/RS485, TCP/IP, web UI, panel keys, remote control
  • Central Control Integration – relay, RS232/485 compatible
  • Rack-mount Ready – standard 19-inch rack installation
  • Scene Management – save and recall up to 30 presets
  • Advanced EDID Management – read, write, store, and apply EDID data
  • Output Control – audio mute, freeze frame, black screen, test patterns
  • Signal Monitoring – automatic feedback for external control system programming
  • Redundancy & Backup – odd/even channel binding and N+1 backup
  • Custom Output Settings – black screen, blue screen, or signal off when no source detected
  • Remote Control On/Off – secure and flexible operation
Bandwidth 597MHz , HDMI 2.0
Audio Format LPCM 2.0

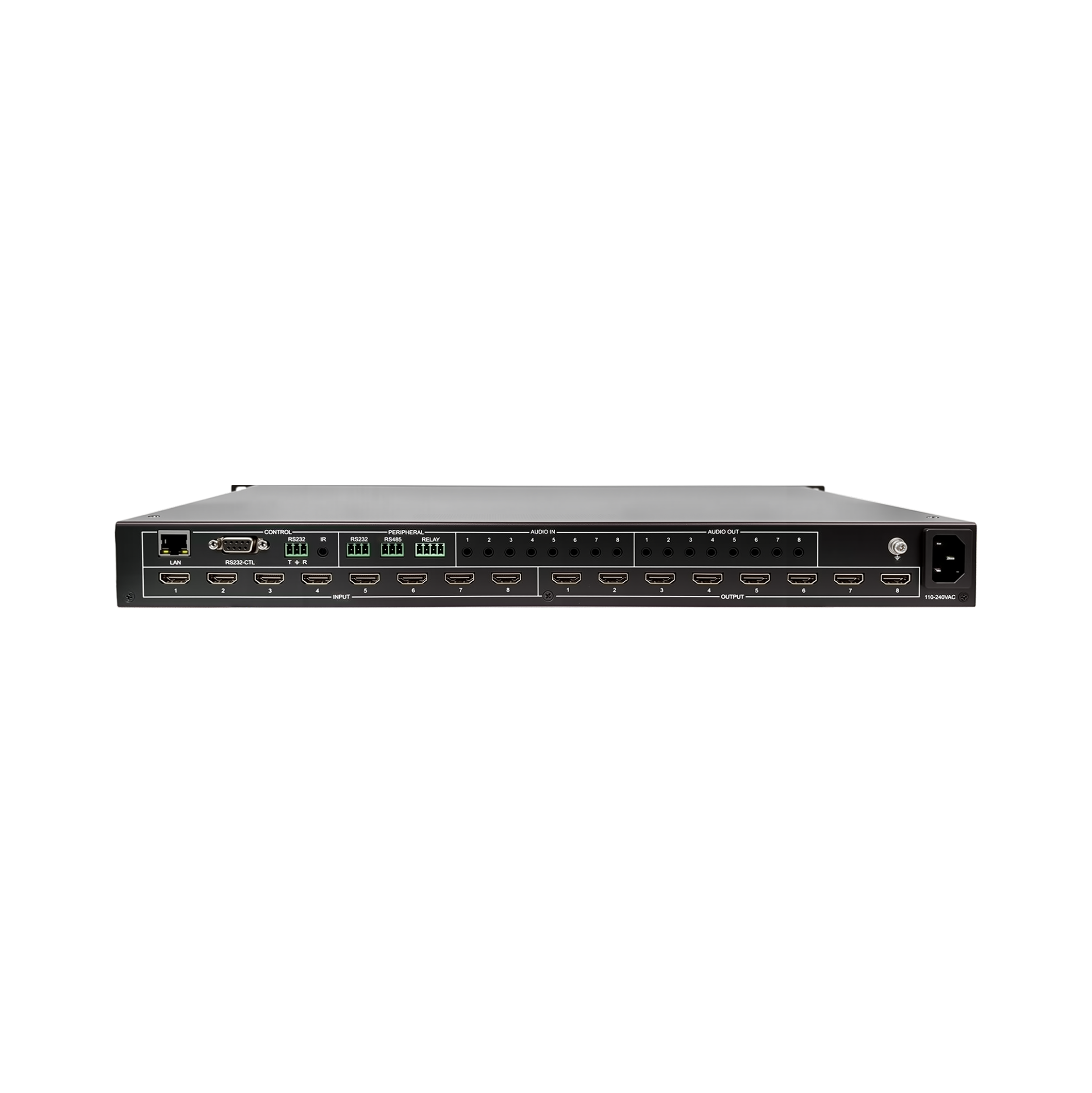

Inputs 8x HDMI， 8x 3.5mm audio
Outputs 8x HDMI， 8x 3.5mm audio
Power 110-240VAC，75W Max
Humidity 10 to 70 % RH (non-condensing)
Dimensions L430 x W220 x H44 mm
Weight 5kg
Item Description
Bandwidth 597MHz, HDMI 2.0
Audio Format LPCM 2.0
Inputs 8x HDMI， 8x 3.5mm audio interface
Outputs 8x HDMI， 8x 3.5mm audio interface
Power 110-240VAC，75W Max
Operating Humidity 10 to 70 % RH (non-condensing)
Operating Temperature 0 to +40°C (+32 to +104 °F)
ESD Air: ± 8KV, Contact: ± 4KV
Dimensions L430 x W220 x H44 mm
Mass 5kg
