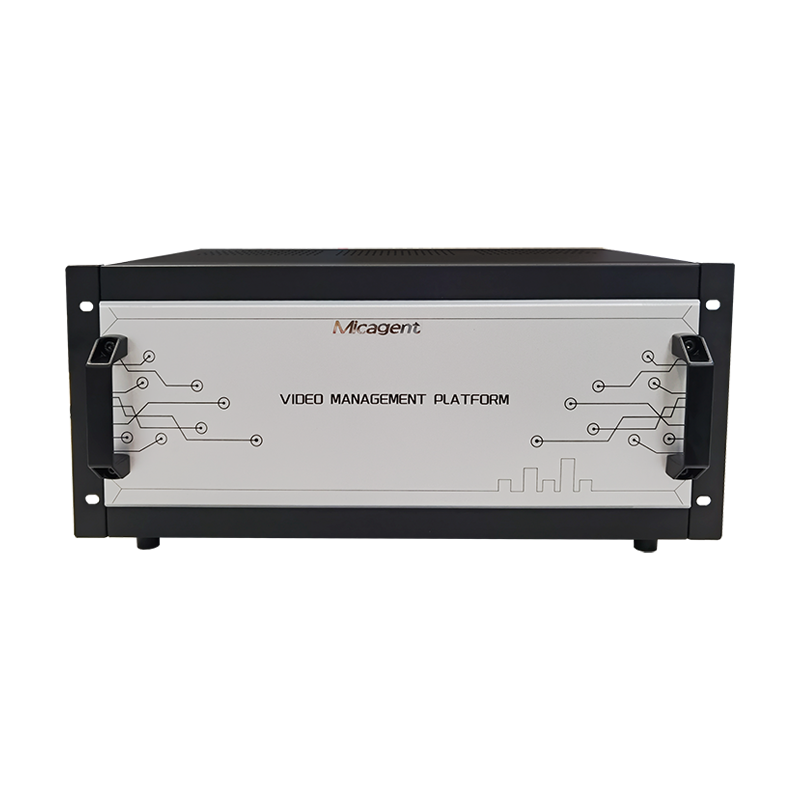

4K60 Intelligent Decoder(64 split screens)
4K60 Intelligent Decoder(64 split screens) - Image 2

4K60 Intelligent Decoder(64 split screens)

The MA1000-V016R ultra high definition (UHD) decoder is a powerful and versatile decoder for HD network cameras and can be widely used in various video security system projects. Built on a stable Linux-based operating system, it delivers reliable performance day and night. This device seamlessly works with ONVIF-compliant IP cameras and supports live viewing and playback from NVRs/DVRs.

Request Quote

  • Modular Design: Features a multi-card slot structure. The 1U chassis supports up to 3 modules, while the 5U chassis holds up to 15 decoding modules. Also includes standard USB and RS485 interfaces.
  • Reliable & Intelligent: A smart video decoding system built on embedded Linux, ensuring stable 24/7 operation.
  • Hardware Architecture: Equipped with a load-balanced Gigabit PCIE backplane for high-performance connectivity.
  • Wide Decoding Support: Compatible with H.265+/H.265, H.264, MPEG2, MPEG4, MJPEG, and more.
  • Protocol & Integration: Supports ONVIF, GB28181, RTSP, RTMP, and others. Easily integrates via SDK and offers full web-based management.
  • HDMI Input & Output: Each decoding card supports 1x HDMI 4K@60Hz input and 2x 4K@60Hz outputs (HDMI 2.0 or DVI-I compatible).
  • Flexible Stream Decoding: Decodes video streams ranging from 325×288 to 4096×2160 pixels.
  • Multi-Channel Display: Each module supports up to 64 splits per HDMI output, with support for VGA, DVI-I, PAL/NTSC.
  • High-Capacity Decoding: Each card decodes up to 144 channels simultaneously with support for 64-split viewing from two different sources.
  • Custom Layouts: Supports flexible video wall splitting including 1, 4, 6, 8, 9, 16, 25, 36, 49, and 64 channels.
  • Output Resolutions: Includes 3840×2160@60, 1920×1080@60, 1280×1024@60, and more.
  • Decoding Performance: Decodes up to 32MP per channel, 4K, 5MP, 1080P, 720P, and D1—all scalable.
  • Pixel Support: Handles resolutions from 32MP down to 1MP seamlessly.
  • System Capacity: A 5U system decodes up to 15x 32MP streams, 30x 4K, 120x 5MP, 270x 2MP, 480x 720P, or 2016x D1.
  • Broad Device Compatibility: Auto-detects cameras from Hikvision, Dahua, Uniview, Huawei, Samsung, and more via ONVIF, GB28181, or RTSP.
  • Image Adjustment & Playback: Adjustable bitrate (128Kbps–16Mbps), manual/auto image tuning, supports decoding up to 8K video with real-time video wall preview.
  • Custom OSD Overlay: Displays location, IP, channel name, and other text over video output.
  • Network Monitoring: Auto-detection of network disconnections.
  • Optional HDMI Input Card: For integrating PC or set-top box signals.
  • NVR/DVR Playback: Compatible with major brands for live preview and playback directly on the video wall.
  • Web-Based Management: Access, configure, and control decoding via web browser (B/S architecture). Supports Linux, Android, iOS, HarmonyOS, and mobile devices.
  • Electronic Map Integration: Import HD vector maps, place cameras by coordinates, and view real-time feeds directly on the map.
  • Large Video Walls: Supports 120-screen splicing with 1080P input and 480-screen with 4K input.
  • External Source Encoding: Supports dual-stream encoding from PC sources with adaptive resolution output.
  • Smart Overlays: On-screen display of camera name, IP, channel, status, and network alerts.
  • Audio Support: 3.5mm audio input and output with 32-bit quality.
  • Audio Codecs: Supports G.711, AAC, G.722, and more. Enables two-way audio communication.
  • Built-in Database: Import/export camera details in bulk via Excel-like tables for easy management.
  • Smart Search: Quickly find cameras by name or keyword through the web platform.
  • Auto-Reconnect & Memory: Recovers automatically after outage and saves settings upon power loss.
  • Scene Memory: Save up to 512 video wall layouts.
Board interface
Outputs 2*HDMI 2.0;1*Audio
Inputs 1*HDMI;1*Audio
Ethernet 1 RJ45 10M/100M/1000M
USB 1*USB2.0
Video Parameters
Window overlay Support MxN splicing, cross-screen window roaming, overlay, picture-in-picture
Decoding format H.265+/H.265/H.264/MPEG4
Network video input 4K/1080P/720P/D1
Output resolution 3840×2160@60HZ 1920×1080@60HZ 1366×768@60HZ 1280×720@60HZ
Video decoding display 1 screen = 3200W/2400W/1200W/800W/600W; 4 screen = 500W/400W/300W;

6 screen = 200W; 8 screen = 200W;9 screen = 200W/1080P; 10 screen =200W/

1080P; 16 screen = 720P; 25 screen = D1;36 screen = D1; 49 screen = D1; 64 screen = D1;
Single screen split display Support 1/4/6/8/9/10/16/25/36/49/64 split
OSD information Supports Chinese and English character overlay, single-line OSD window, and warning information display
Single machine output interface 1080P input can cascade splicing curtain wall up to 8 rows x 15 columns, 4K input can cascade splicing curtain wall up to 16 rows x 30 columns
Management and maintenance
Basic application Support user login and logout
Upgrade Support network upgrade
Customize Support emergency plan, grouping, patrol
Other
Platform docking Provide SDK, support third-party software access control;
Alarm input Support network alarm host switch signal access and linkage pop-up window;
Decoding display response ≤1 second
Power supply 220V
Power consumption ≤160W
Working environment Temperature: -10°C — +55°C

Humidity: 10% — 90%
