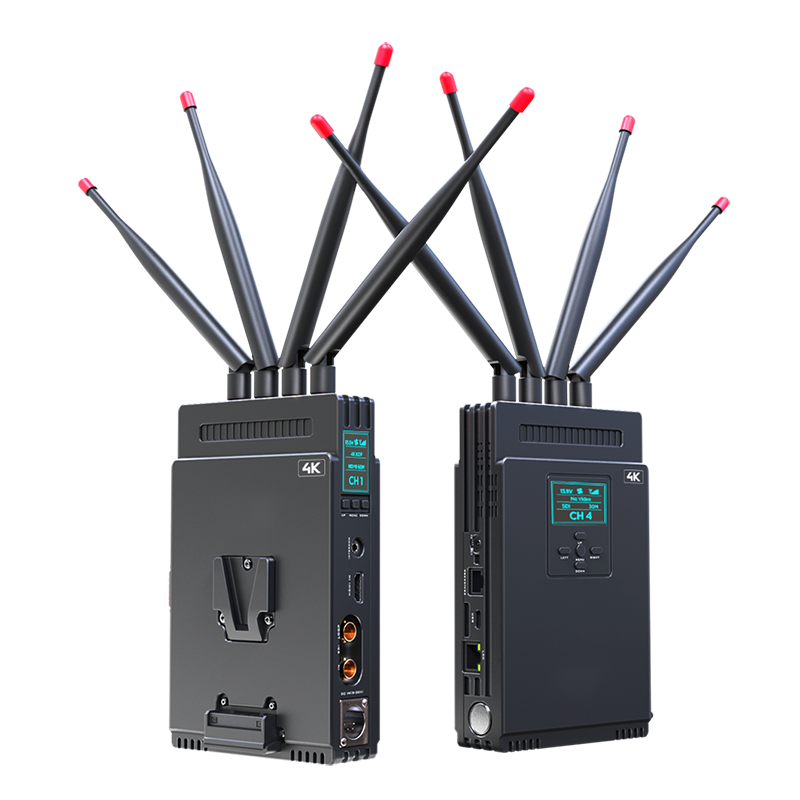

The Broadcast-Grade 12G 4K Wireless Video Transmission System delivers uncompressed, low-latency 4K UHD video over a 5GHz wireless network with professional 12G-SDI and HDMI 2.0 interfaces. Designed for broadcast studios, film production, and live event coverage, it meets the demanding requirements of professional-grade workflows.
| Item | Transmitter | Receiver |
|
Operating Frequency Range |
5190 MHz（1），5230 MHz（2），5270 MHz（3），5310 MHz（4），
5510 MHz（5），5550 MHz（6），5590 MHz（7），5630 MHz（8）， 5670 MHz（9），5755 MHz（10），5795 MHz（11） |
|
| Antenna Type | 4×4 MIMO 5dBi external antenna | |
| Modulation Method | OFDM | |
| Transmit Power | 23dBm | |
| Network Encryption | WPA2 / WPS | |
| Streaming Protocol | RTSP | |
| Transmission Distance | 500 meters (50Mbps line-of-sight) | |
| Transmission Delay | 70ms | |
| Video Bitrate Range | 20-60Mbps | |
| Video Compression Format | H.265 encoding/decoding | |
| SDI Resolution | 4096×2160 23.98/24/25/29.97/30/50/59.94/60Hz
1080P 60/59.94/50 Hz（A&B）1080i 60/59.94/50 Hz 1080P 30/29.97/25/24/23.98 Hz 1080PsF 29.97/25/24/23.98 Hz 720P 60/59.94/50 Hz |
|
| HDMI Resolution | 4096×2160 23.98/24/25/29.97/30/50/59.94/60Hz
3840×2160 23.98/24/25/29.97/30/50/59.94/60 Hz 1080P 60/59.94/50/30/29.97/25/24/23.98 Hz 1080I 60/59.94/50 Hz;720P 60/59.94/50 Hz |
|
| Audio Format | MPEG-AAC sampling rate 48kHz, bit depth 16bit | |
| Power Consumption | 16W | 13W |
| Operating Voltage Range | 9-36V | |
| Temperature Range | -10°C – 55°C | |
