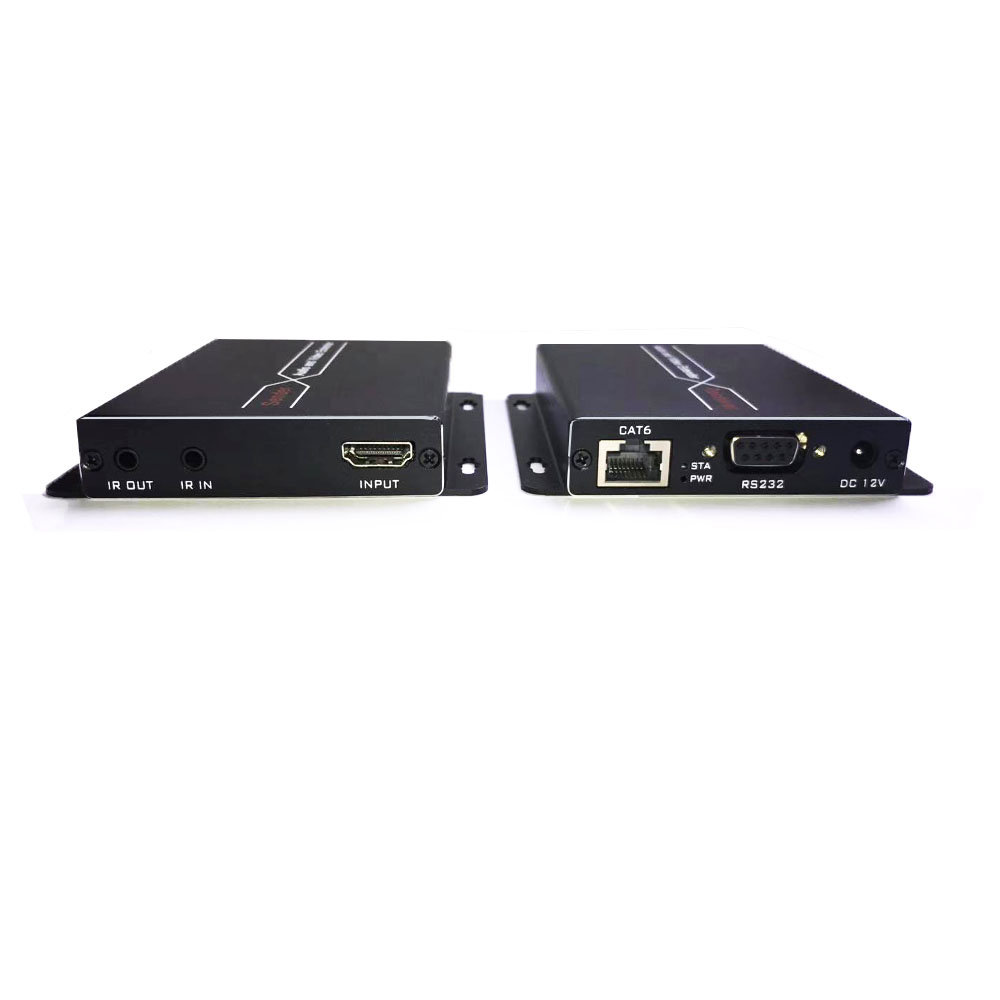

MA-EX603H HDBaseT Extender (70/100M)

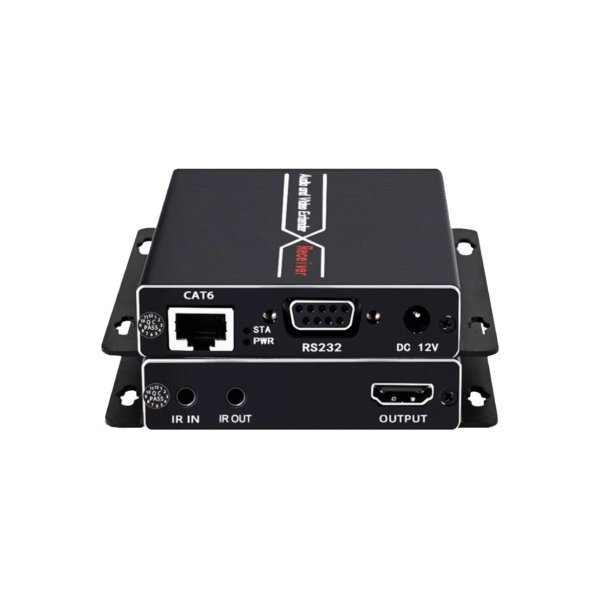

MA-EX603H HDBaseT Extender (70/100M) - Image 2

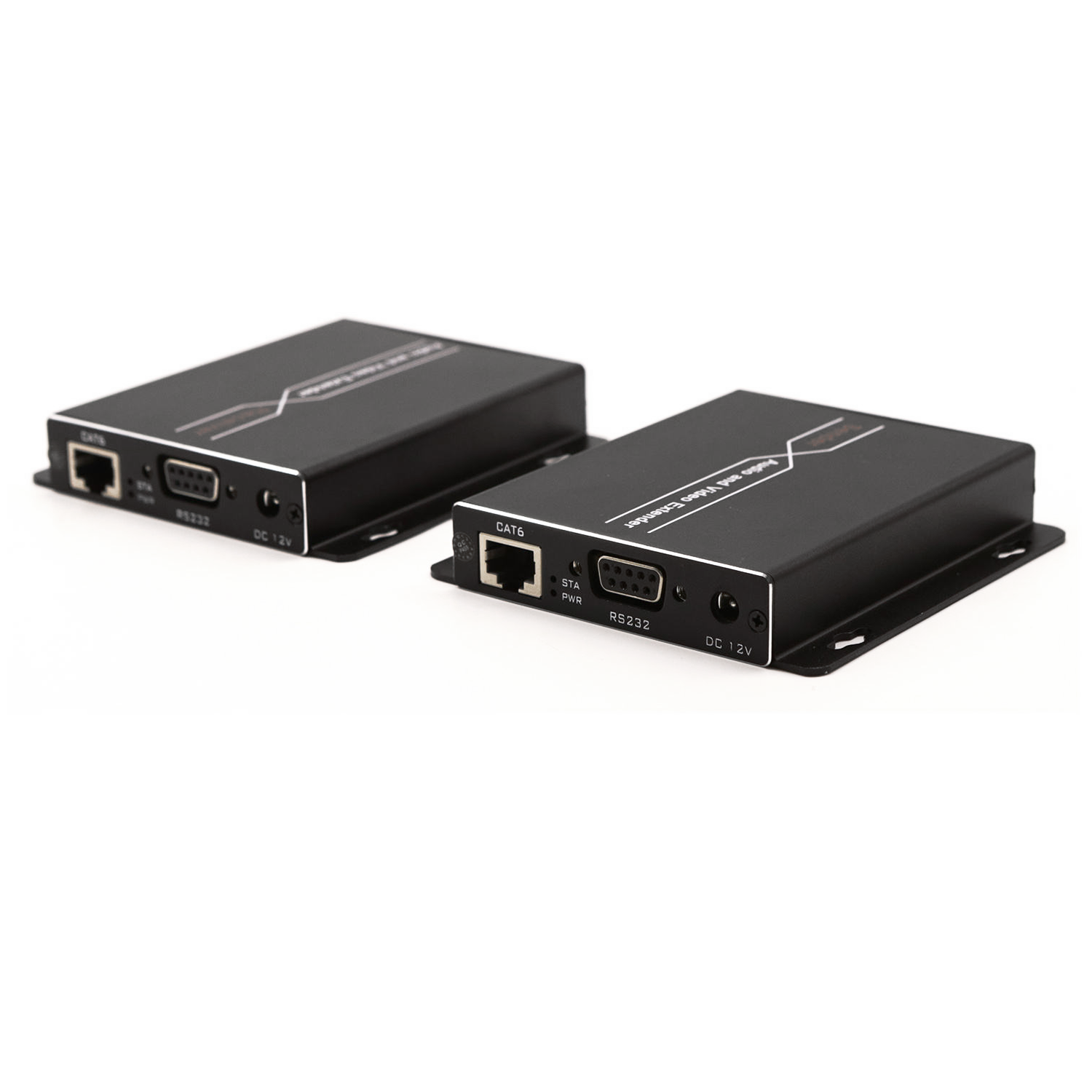

MA-EX603H HDBaseT Extender (70/100M) - Image 3

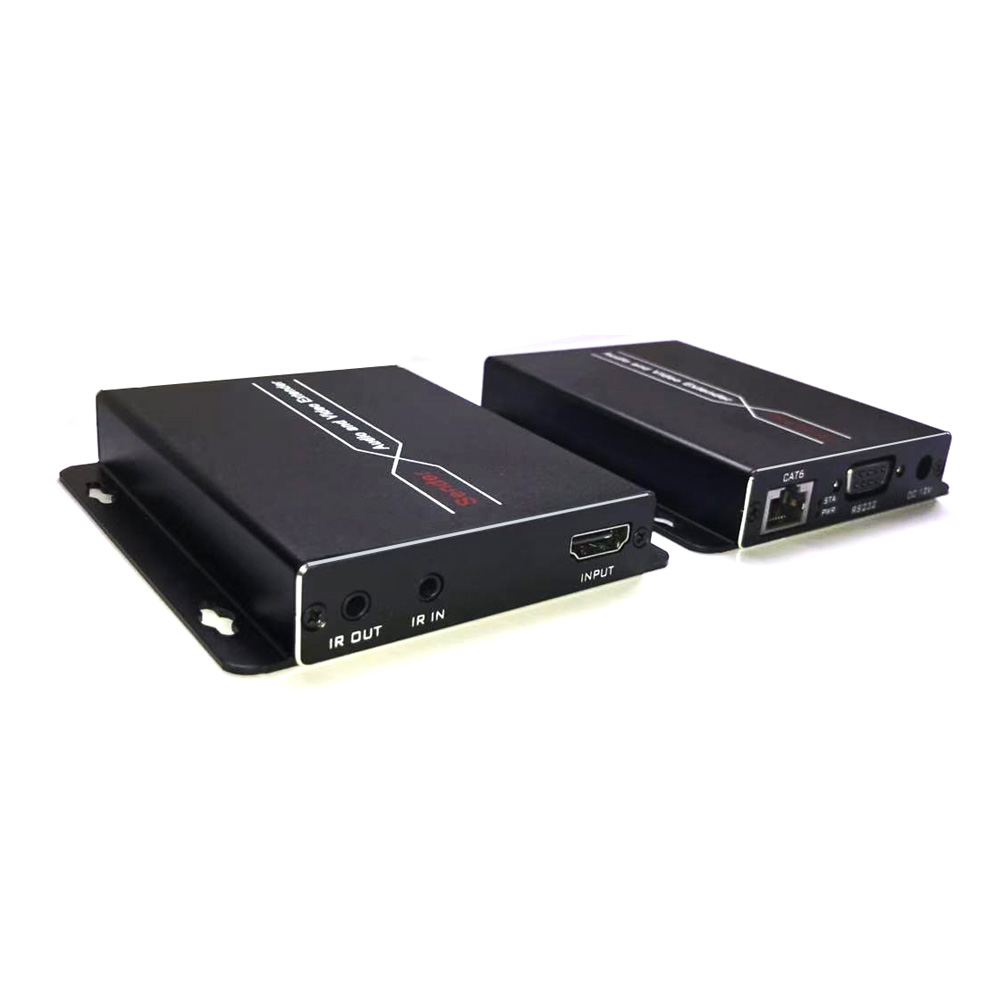

MA-EX603H HDBaseT Extender (70/100M) - Image 4

MA-EX603H HDBaseT Extender (70/100M)

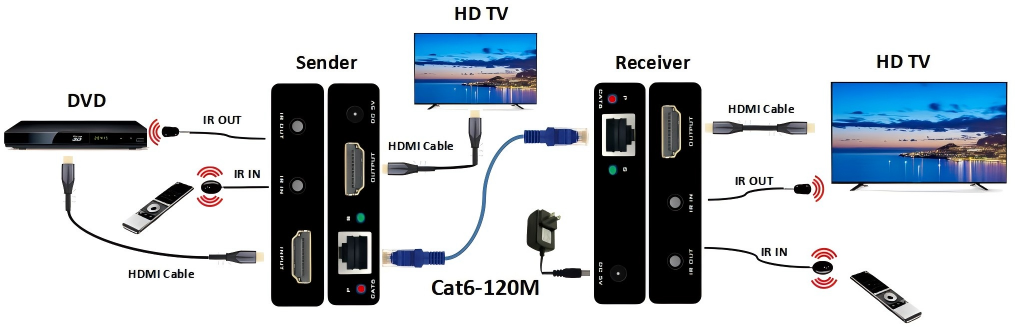

Seamless HDMI extension up to 70-100m over a single Cat6 cable—uncompressed, stable, and cost-effective.Supports HDBaseT, IR/RS232 control.Widely used for HD conferencing, film production, education, and digital signage.

Request Quote

  • The resolution is 1080P@60hz and can be transmitted 70/100 meters using CAT6 network cable
  • Support HDBaseT standard protocol
  • Video resolution is up to 3840*2160@30Hz
  • Support RS232 serial port data transparent transmission and CEC.
  • Support POC unilateral power supply, only need to power the transmitter or receiver
  • Support infrared (20-60Khz) signal bidirectional return control
  • HDMI 1.4 and HDCP 1.4 standards
  • Support EDID, HDCP transparent transmission, improve compatibility, match signal source and display device
  • Built-in automatic adjustment system to make the image smooth, clear and stable
  • Built-in ESD electrostatic protection circuit, simple installation, plug and play
Video Supported protocols HDMI 1.4; HDCP 1.4
HDMI pixel bandwidth 225MHz, fully digital
HDMI interface bandwidth Total bandwidth 10.2Gbps
Maximum supported resolution 3840X2160@30Hz and backward compatible
Video interface HDMI-A interface
HDMI interface impedance 100Ω
HDMI cable usage length Less than 5 meters, at 1920X1080@60Hz
Infrared Infrared interface Marked 3.5MM audio interface
Infrared frequency Standard 20-60KHz
Signal type Digital signal
Infrared transmission direction Two-way transmission
Network Network cable interface Standard RJ45 interface (568B)
Maximum network cable transmission distance Use pure copper Category 6 network cable up to 120 meters
Other Power supply Power adapter: DC 5V
Maximum power consumption MAX 4W
Operating temperature -5℃ ~ +70℃
Operating humidity 5% ~ 90%
Host size 82*85*17mm
Warranty period 1 year free warranty
