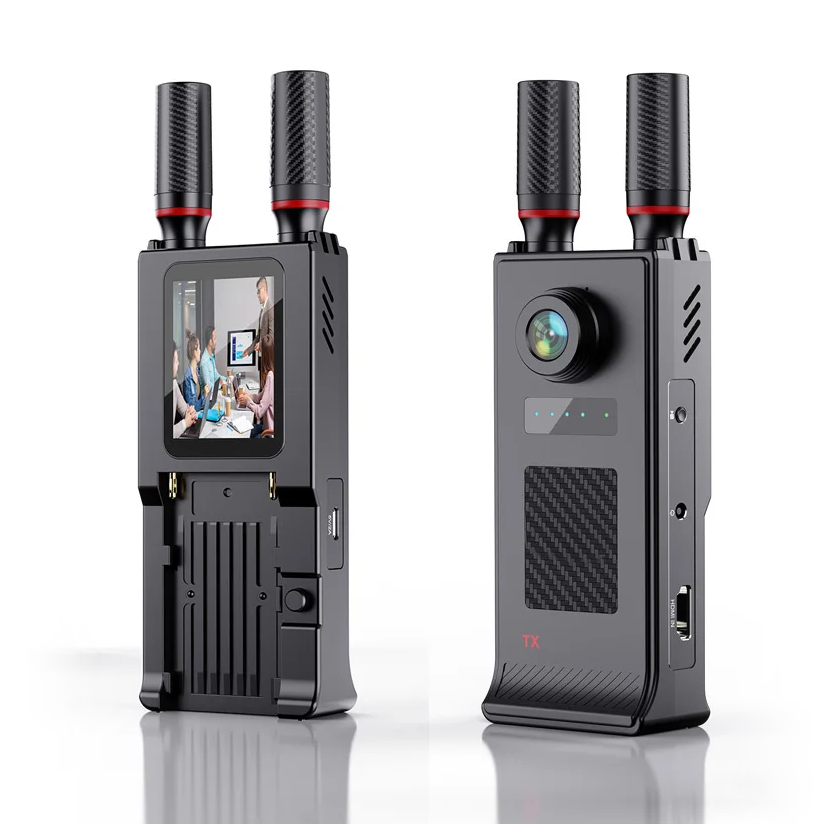

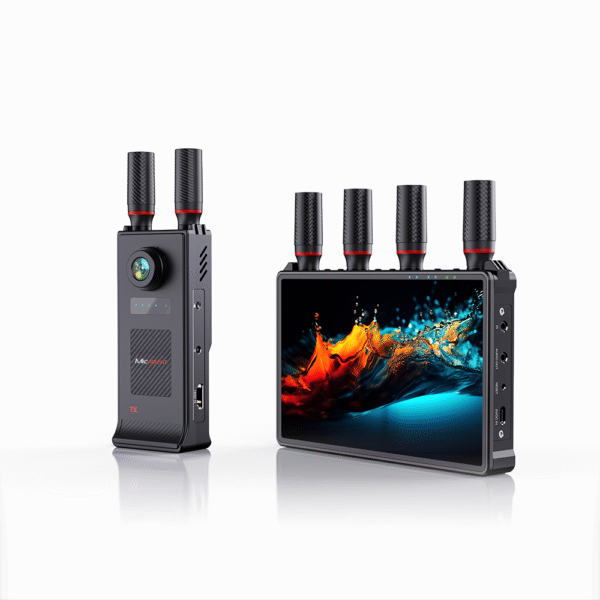

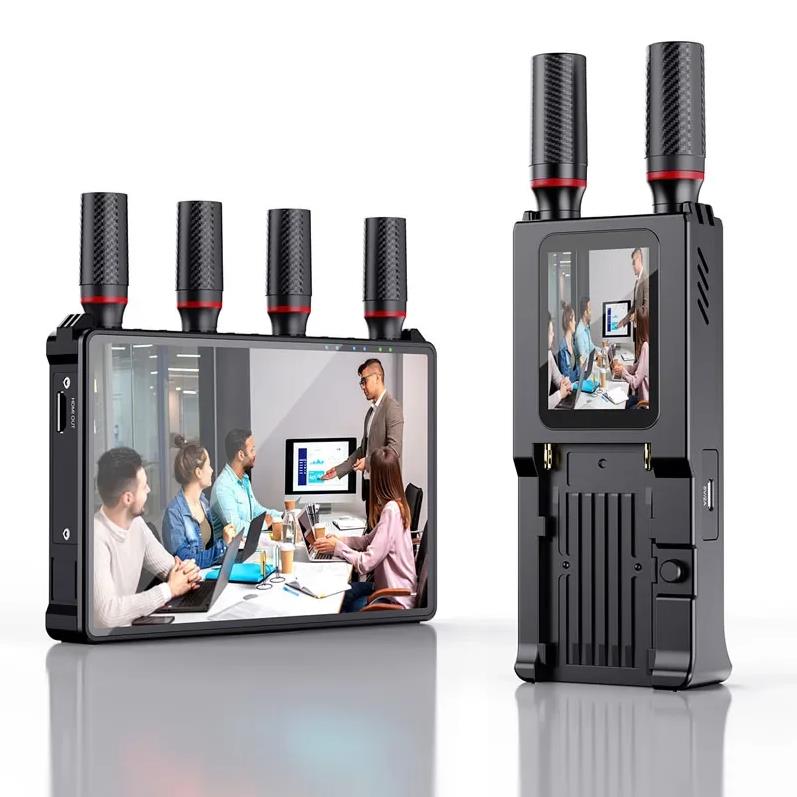

MA085P Transmitter is a signal source with a built-in camera input and receiver is a lager display with 7” LCD. It is widely used in home, live broadcast, office, professional scenes and other fields.
| Camera Pixels | 2 MegaPixel |
| HDMI Resolution | 1920×1080@60Hz |
| TX camera MIC | Support voice input |
| Transmission Range | 1312FT/400Meters |
| Frequency | 2.4GHz/5GHz |
| Video Coding | H.265 |
| Video/Audio Latency | ≤0.05S |
| HDMI IN | 1920x1080P@60Hz backward |
| HDMI OUT | 1920x1080P@60Hz |
| Power Supply Options | Type-C/DC 5V/2A/NP-F Battery |
| HDMI Protocol | HDMI1.3,HDCP1.4 |
| Code | 20Mbps |
| Material | PC+ABS+Metal |
| Compatibility | PC/Laptop/PS4/5/TVBOX/Camera |
| IR Interface | 3.5mm headset interface,Frequency range:30KHz~60KHz |
| Audio interface | 3.5mm headset interface,Support dual audio channel |
| RX button | 1*Reset
1*SYSTEM POWER 1*LCD Power 1*brightness+ 1*brightness- 1*volume+ 1*volume- |
| RX loudspeaker | 1*1.5W |
| RX Interface | 1*HDMI OUT
1*IR 1*Type-c(Power interface) 1*3.5mm headset interface 1*RESET button |
