Video Wall Controller

The is a high-performance Video Wall Controller designed for large display systems.

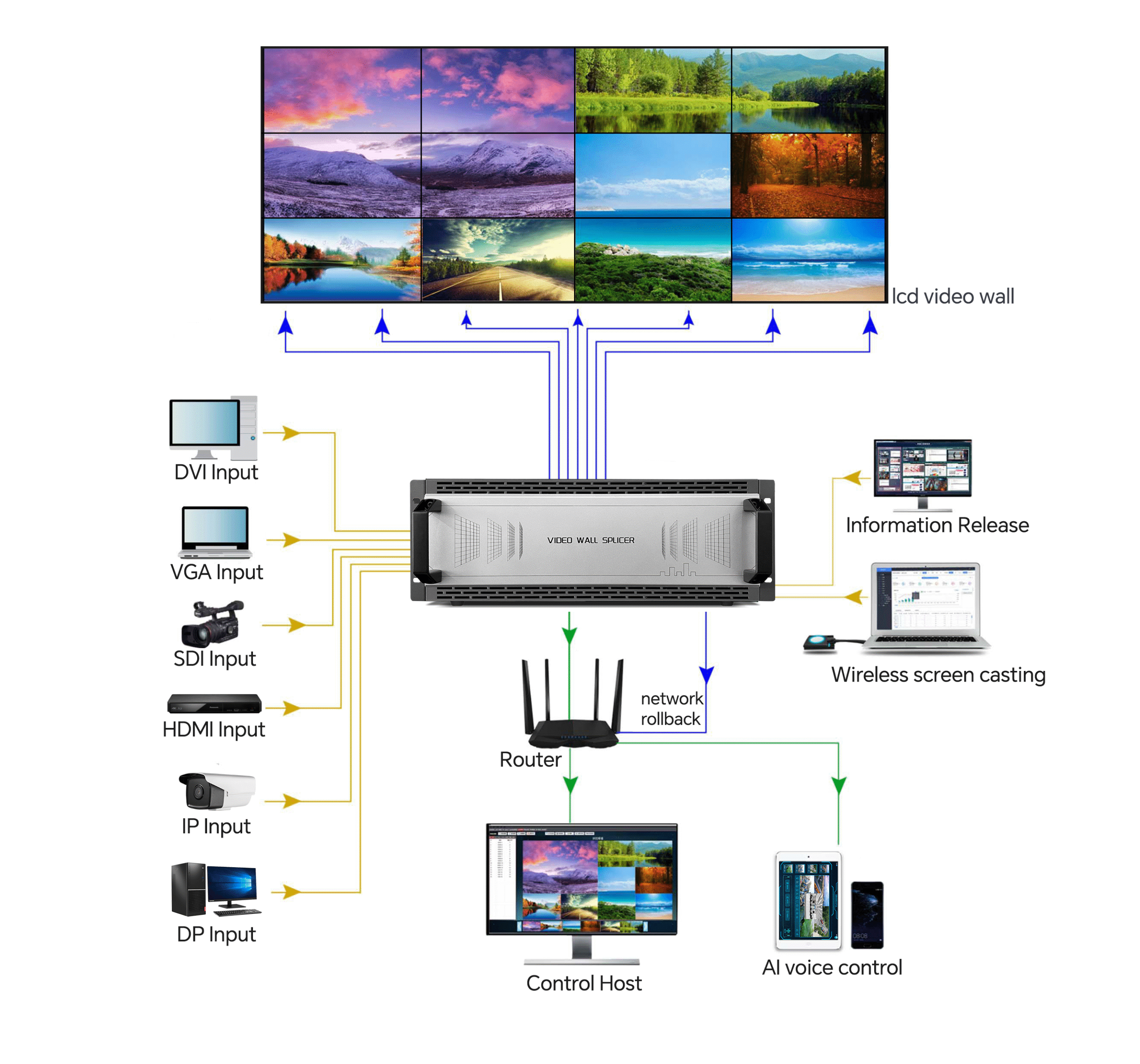

It can take multiple input signals (PC, cameras, media players, etc.), process them through splicing, scaling, and switching, and deliver seamless ultra-HD visuals across multiple screens.Whether in corporate meetings, exhibitions, command centers, or stage events, it ensures a stable and immersive viewing experience.

Request Quote

  • Modular design, flexible expansion ：Supports multiple chassis sizes (2U–24U), up to 144 input & 144 output channels, with card-based expansion for flexible project requirements.
  • Multi-Interface Compatibility： Supports multiple mainstream interfaces such as HDMI, DVI, SDI, VGA, DP, etc. to meet the access needs of different devices.
  • Ultra-HD Visuals, Smooth and Lag-Free：Up to 4K UHD input/output, , fully compatible with 1080P. Every detail is sharp and vivid.
  • Flexible Display Modes：Arbitrary splicing for single signal display，Supports windowing, PIP (Picture in Picture), overlay, roaming, scaling, cross-screen。
  • Intelligent control, Easy operation：Control via RS232, TCP/IP network, PC client, WEB browser control, and SDK integration with third-party systems.
  • Full 4K Input & Output ：Supports 3840×2160@30Hz input and output, fully compatible with 1920×1080@60Hz. When combined with 4K physical displays, the system can deliver up to 16K ultra-immersive visual performance .
  • IP Decoding Card:Real-time decoding from IP cameras,Supports 4K/5MP/3MP/1080P/720P/D1 network cameras, compatible with major brands via ONVIF and GB28181 protocols.Each card handles up to 36 split screens, with flexible layouts.
  • Wireless Casting Module: Allows laptops, smartphones, and tablets (Android/iOS) to share content wirelessly on the video wall.
  • Preview & Monitoring Card: Enables live preview of multiple video inputs for operators.
  • Dante Audio Card: Professional dual-channel audio input/output for synchronized high-quality sound.
  • Virtual LED Subtitles: Add scrolling or static text messages (welcome notes, alerts, announcements) on screen.
  • KVM Switching: Control multiple computers with a single keyboard and mouse, smooth screen roaming supported.
  • Redundant Power Supply: Dual power backup ensures uninterrupted operation even if one power source fails.

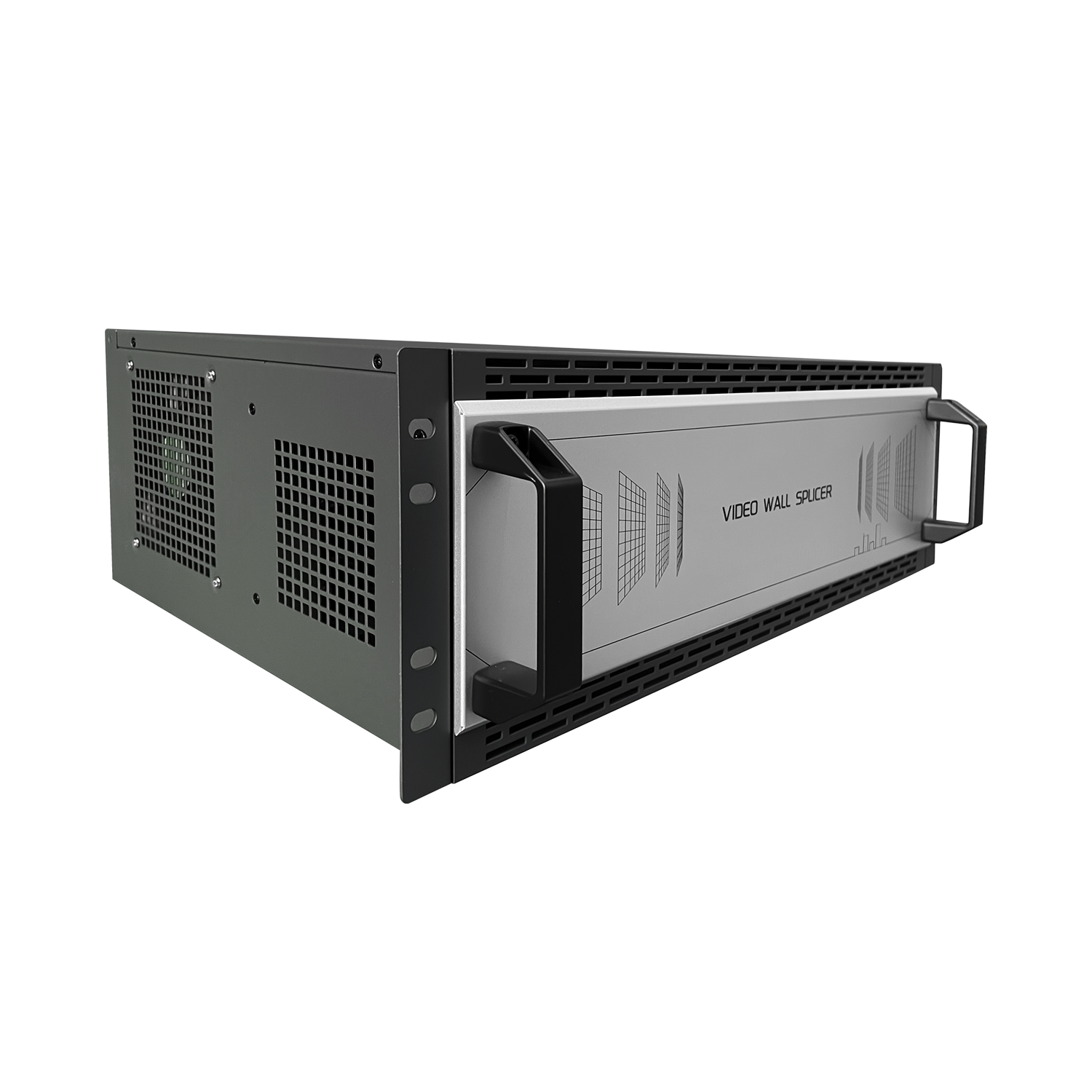

Chassis ( Standard )
Chassis size 3U 6U 12U
Number of Inputs 16 36 72
Number of Outputs 20 36 72
Dimensions (mm) 480*330*160 480*350*265 485*445*530
Supply Voltage AC110-400V
Supply Frequency 50/60Hz
Operating temperature 0-45℃
Main control board 1*RS-232 serial port, 1*10/100 Mbps self-adaptive Ethernet port
Service Board ( Optional )
Name Signal Type Ports Qty Description
HDMI input board HDMI1.3 2 1920×1080/60hz & EDID Management


SDI input board 3G SDI 4 1080i/60hz、1080P/60hz、720P/60hz
DVI input board DVI-D 4 1920×1080/60hz & EDID Management
DP(adapter) input board DPI. 1 2 3840×2160/30hz & EDID Management
4K30 HDMI input board HDMI2.0 2 3840×2160/30hz & EDID Management
4K60 HDMI input board HDMI2.0 1 3840×2160/60hz & EDID Management
8K30 HDMI input board HDMI2.0 1 7680×2160/30hz & EDID Management
VGA input board RGBHV 4 1080P/60hz
IP Decoder board H.264/H.265 4 4K、1080P、720P、D1
BNC input board Analogue coaxial 4 D1
Wireless screen casting board RJ45 4 Simultaneously supports 4 cell phones and computer mixed casting
Information Release board RJ45 4-9 Supports 4-9 applications to capture and push PPT, documents, web browsers, software, local videos and images.
HDMI output board HDMI1.0 2/4 1920×1080/60Hz. 1440×1440/60Hz

&Customized


4K HDMI output board HDMI2.0 2 3840×2160/30Hz. 1920X10B0/60hz. 2560X816/60Hz. 1440X1440/60Hz &Customized
DVI output board DVI-D 2/4 1920X1080/60Hz.1440X1440/60Hz

& Customized
Preview board H.265 2 Signal preview display back
