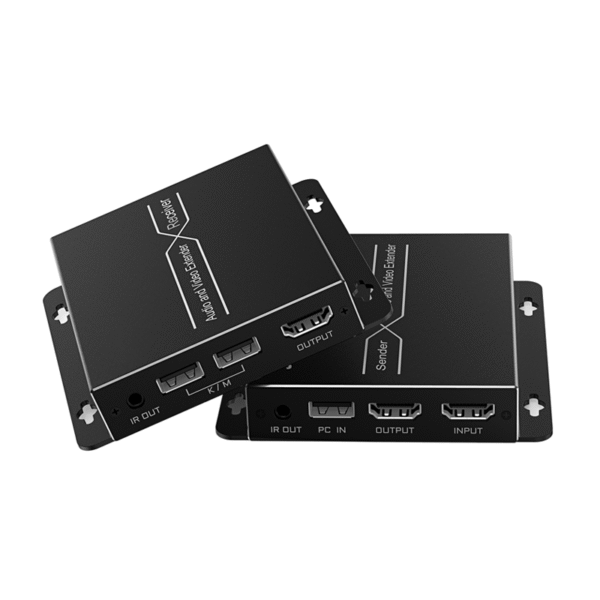

Transmits HDMI signals up to 250 meters over pure copper CAT6 cable for stable, high-quality video.
Fully compatible with HDMI 1.3 and HDCP 1.2 standards.
Supports TCP/IP protocol for flexible network integration.
Built-in EDID management ensures optimal compatibility between source and display devices.
Delivers Full HD 1080p@60Hz and 3D video with downward compatibility for lower resolutions.
Features local HDMI loop-out for real-time monitoring at the transmitter.
Supports bidirectional IR control for convenient remote operation.
Optional keyboard and mouse extension for interactive control.
| Video | Supported protocols | HDMI 1.3; HDCP 1.2 |
| HDMI pixel bandwidth | 165MHz, fully digital | |
| HDMI interface bandwidth | Total bandwidth 6.75Gbps | |
| Maximum supported resolution | 1920X1080@60Hz and backward compatible | |
| Video interface | HDMI-A interface | |
| HDMI interface impedance | 100Ω | |
| HDMI cable usage length | Less than 5 meters, at 1920X1080@60Hz | |
| Infrared | Infrared interface | Standard 3.5MM audio interface |
| Infrared frequency | 38KHz standard (upgradeable to 20-60KHz) | |
| Signal type | Digital signal | |
| Infrared transmission direction | Reverse transmission | |
| Network | Network cable interface | Standard RJ45 interface (568B) |
| Maximum network cable transmission distance | Use Cat6 network cable up to 250 meters | |
| Other | Power supply | Power adapter: DC 5V |
| Maximum power consumption | MAX 4W | |
| Operating temperature | -5℃ ~ +70℃ | |
| Operating humidity | 5% ~ 90% |
