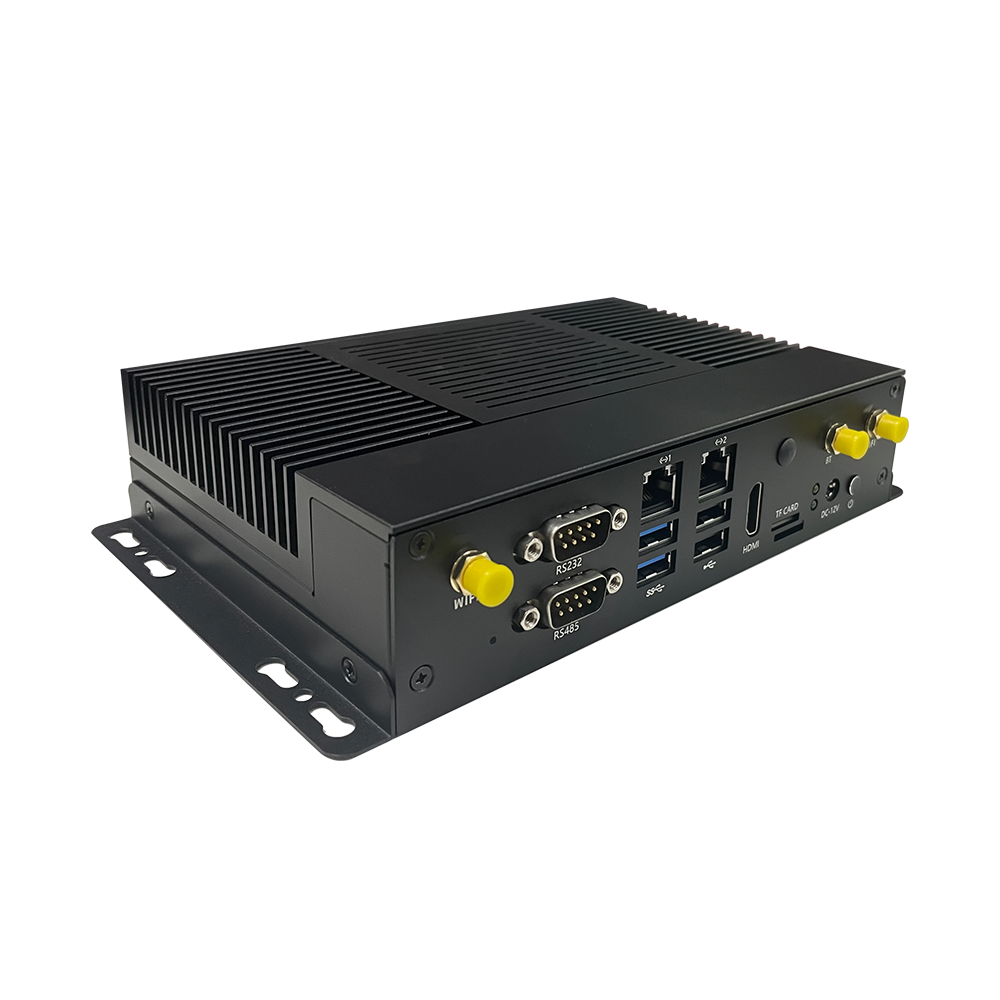

Multimodal Al Intelligent Terminal
Multimodal Al Intelligent Terminal - Image 2

Multimodal Al Intelligent Terminal

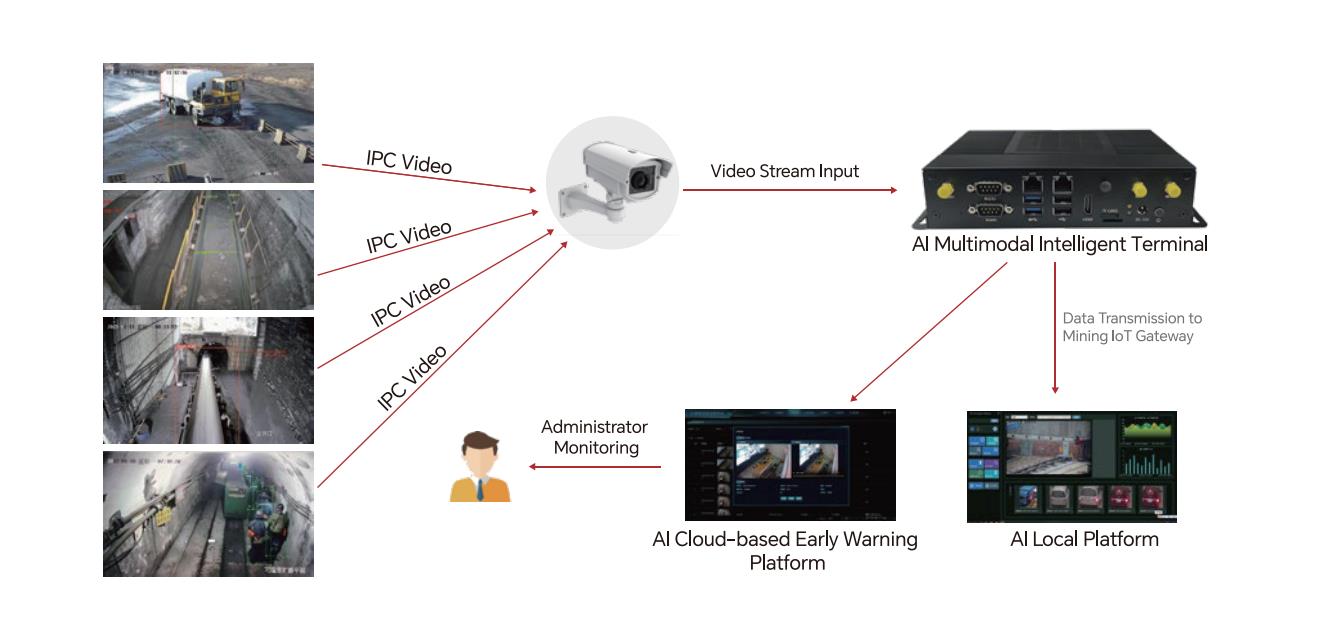

supports up to 20 real-time video streams for simultaneous object detection and behavior recognition. Integrated with the latest Deepseek Janus-Pro multimodal AI model, the system combines edge computing, video decoding, intelligent analytics, and event alerting in a single compact device.

Request Quote

  • Supports 20-channel video analysis and 10,000 event scenarios simultaneously with 90%+ recognition accuracy.
  • Enables multimodal analysis for complex object, behavior, and event recognition.Recognizes 40+ behavior types, including helmet wearing, fire/smoke detection, intrusion, illegal parking, phone use, fall detection, and more.
  • Captures and stores snapshots with pre- and post-event video (±5s), supports alarm image and short video generation.
  • Supports ONVIF, RTSP, GB28181, and major camera brands; real-time link monitoring and auto reconnection.
  • Dual Gigabit Ethernet ports with optional 4G/5G module; supports B/S web-based control and management.
  • Fanless lightweight structure for stable operation under heavy dust, oil, and high/low temperature conditions.
  • Provides SDK and RESTful APIs for system integration and secondary development.
Processor 8-core A53 CPU (Taishan V200M), 2.3GHz; supports FP32/FP16/BF16/INT8 mixed precision
GPU / NPU Integrated GPU + NPU delivering 36 TOPS performance; supports TensorFlow, PyTorch, Caffe, MXNet, PaddlePaddle, ONNX
Memory / Storage 16GB DDR4 + 64GB eMMC + 64GB TF (expandable to 512GB); supports M.2 SSD expansion
Video Input Up to 20 channels (2–4MP H.264/H.265 IP streams)
Video Output 1× HDMI (supports 1/4/8/9/16/20 split-screen)
Audio Output 1× Audio Line Out
Network Dual 10/100/1000 Mbps RJ45 ports; optional 4G/5G module
USB Interface 2× USB 3.0 (backward compatible with USB 2.0)
Operating System Embedded Linux
AI Algorithms Deepseek Janus-Pro multimodal model + YOLO-based recognition
Operating Temperature -20°C ~ +60°C
Operating Humidity 5% – 90% (non-condensing)
Power Supply / Consumption DC 12V / ≤36W
Dimensions 181 × 150 × 36 mm
Weight ≤1.2 kg (including HDD)
