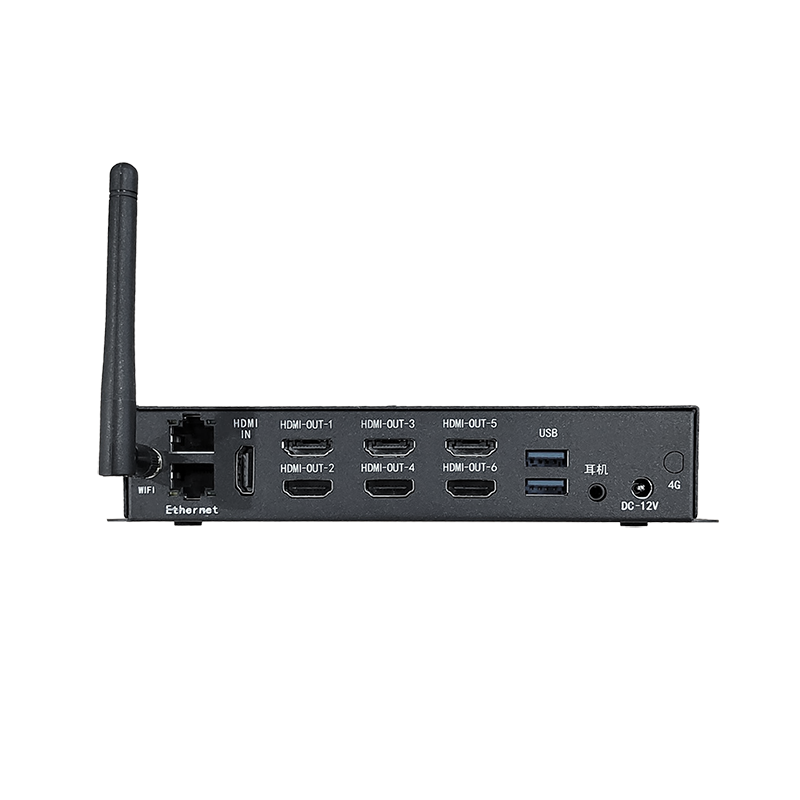

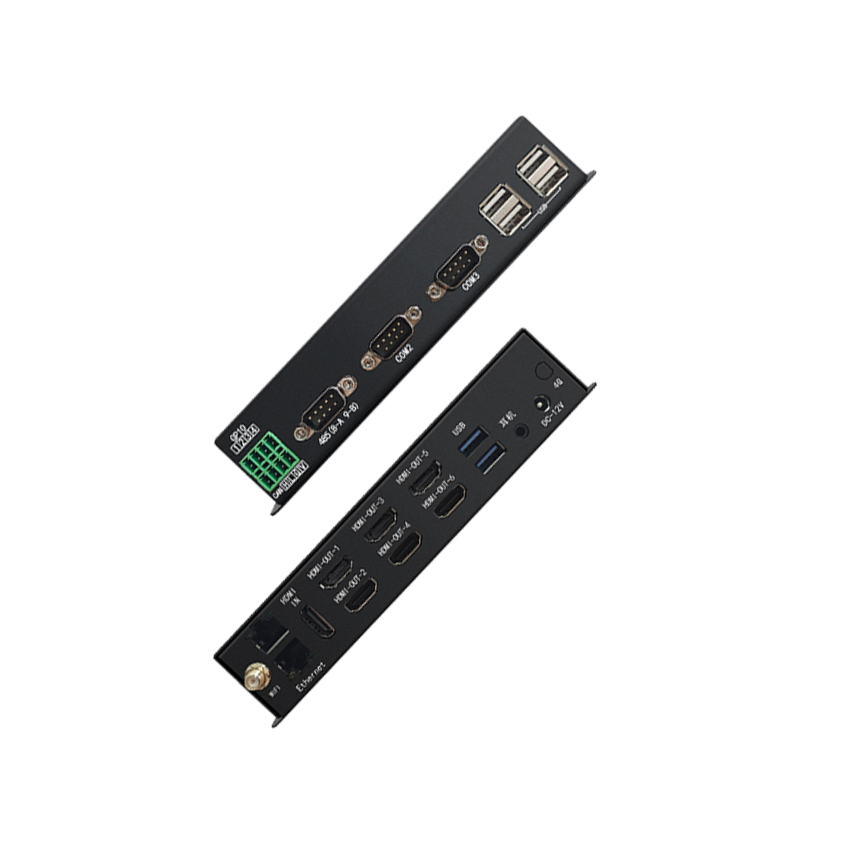

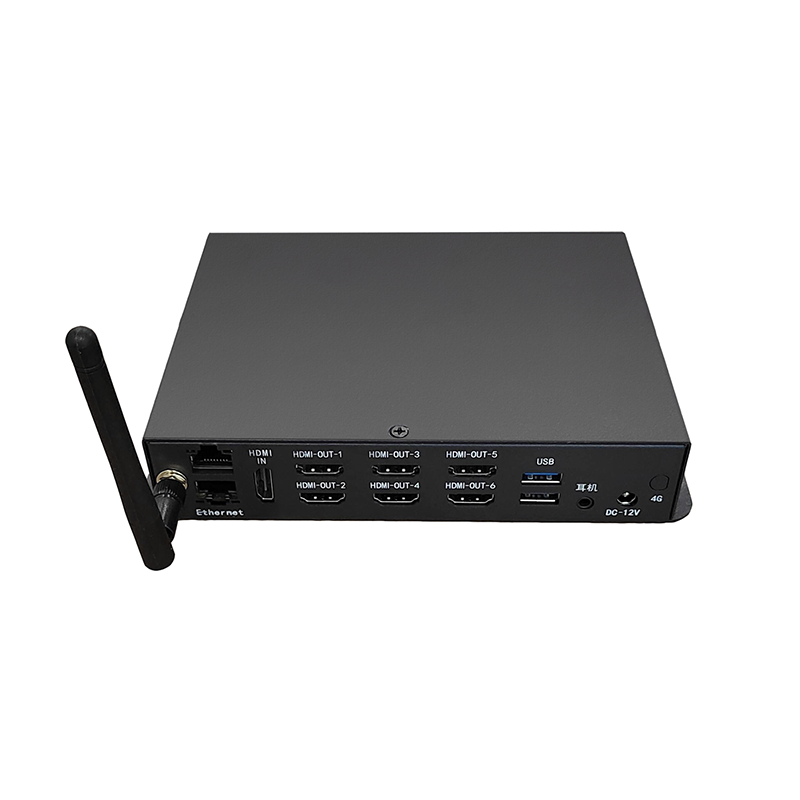

Network Multimedia Player Box
Network Multimedia Player Box - Image 2
Network Multimedia Player Box - Image 3
Network Multimedia Player Box - Image 4

Network Multimedia Player Box

The Network Multimedia Player Box is a high-performance multimedia device that supports multi-screen display, HD decoding, and a wide range of connectivity options. It is ideal for digital signage, information display, monitoring centers, and other scenarios.

Request Quote

  • Built on an 8-core 64-bit processor (Cortex-A76 + Cortex-A55) with advanced 8nm technology, offering smooth, reliable performance for high-resolution video and graphics.

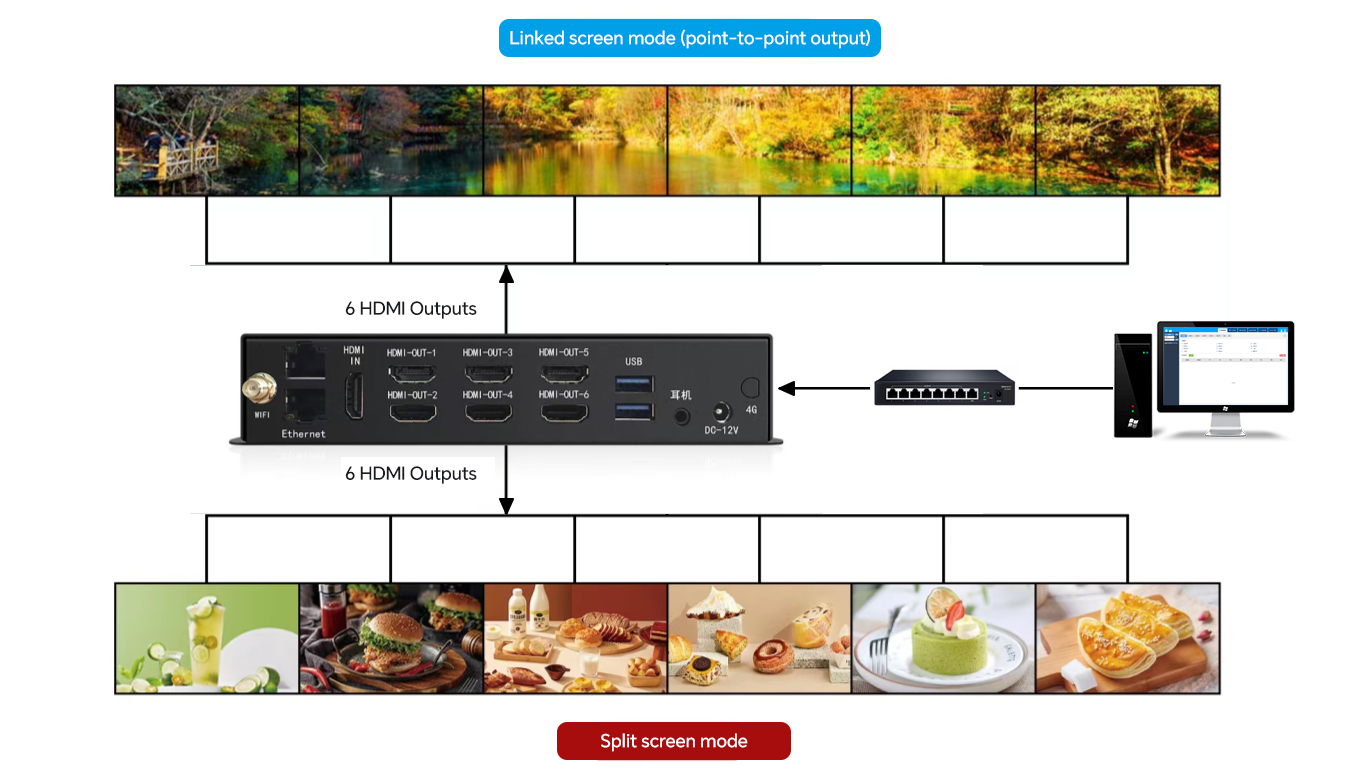

  • Flexible Multi-Screen Display：Equipped with 6 HDMI outputs, supporting up to 8K video playback and multiple screens with synchronized or independent content. Perfect for video walls and immersive displays.
  • Dual Gigabit Ethernet, WiFi 6 (2.4/5GHz), Bluetooth 5.0, with support for 4G/5G expansion to keep your system always connected.
  • Supports WiFi connectivity and USB drive playback for videos.
  • Allows control via Windows PC or tablet web browsers to easily send and play videos or images on the Network Multimedia Player.
  • Comprehensive I/O Options：Multiple USB ports, serial ports, GPIO, and other expansion interfaces make integration easy with cameras, touch screens, sensors, and external control systems.
  • Runs on Android 12, with support for system optimization and secondary development. Ideal for creating customized applications and interactive experiences.
CPU RK3588, octa-core 64-bit (4xCortex-A76 + 4xCortex-A55), 8nm advanced process, up to 2.4GHz.
GPU ARM Mali-G610 MP4 quad-core GPU, supports OpenGL ES 3.2, OpenCL 2.2, and Vulkan 1.1, 450 GFLOPS.
NPU NPU boasts up to 6 TOPS of computing power, supports INT4, INT8, and INT16 hybrid operations, and enables network model conversion for frameworks such as TensorFlow, MXNet, PyTorch, and Caffe.
RAM 4GB/8GB/16GB 64-bit LPDDR4/LPDDR4x/LPDDR5 (configurable up to 32GB)
Internal Memory eMMC 16GB (default), 32GB, 64GB, or 128GB.
HDMI IN 1 port, supports a maximum resolution of 4K
HDMI OUT 6 ports, supports a maximum resolution of 8K
Headphone Jack 1 mono microphone input (analog signal input), 1 dual-channel audio output (analog signal output).
Ethernet 2 standard RJ45 ports, 10/100/1000M adaptive Ethernet.
Wi-Fi/Bluetooth Onboard Wi-Fi/BT module, supports 2.4GHz/5GHz dual-band Wi-Fi 6 (optional), 802.11a/b/g/n/ac protocols, and Bluetooth 5.0 (with BLE).
USB 5 USB host ports (1 external standard double-layer USB 3.0 port, 2 external standard double-layer USB 2.0 ports) for connecting external HD USB cameras, USB flash drives, keyboards, mice, and other devices.
USB OTG 1 USB OTG port for system debugging and firmware updates, can also be set to host mode.

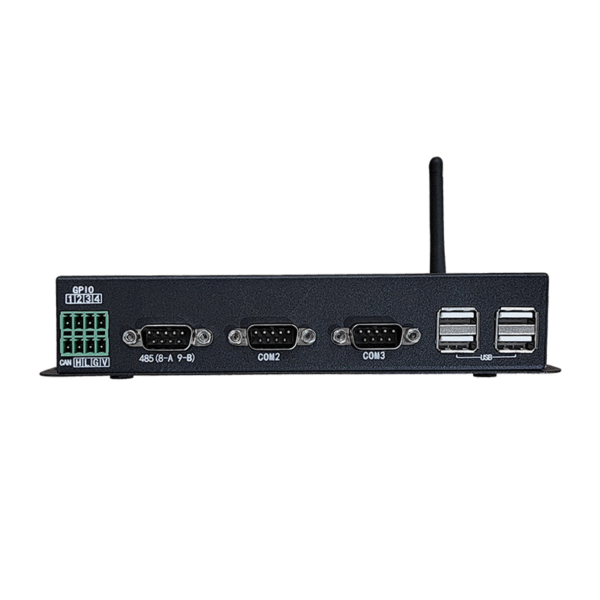

Serial Port 3 serial ports, including 1 RS485 and 2 RS232.
GPIO 4 ports, supporting input/output.
Onboard RTC Supports real-time clock (requires external 2.6-5V power supply).
Operating System Android 12
Power Socket 1 external DC12V input socket (DC-5.5*2.5mm female).
Recommended Power Supply 12V 3-5A (selectable based on external device power).
System Upgrade Supports PC/USB flash drive/TF card upgrades.
Operating Temperature 0°C-70°C (5°C-35°C recommended).
Operating Humidity 10%-90% humidity, non-condensing.
Storage Temperature -30℃~75℃
