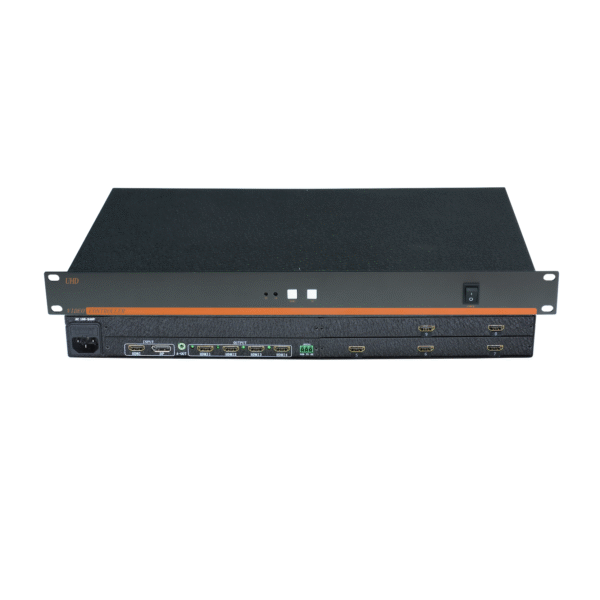

The MA-Pixel series is a point-to-point video wall controller designed for ultra-high-resolution splicing displays.
It supports multiple splicing modes to achieve true pixel-to-pixel output, ensuring lossless, proportional, distortion-free, and non-stretched images. The controller supports DP input up to 5760×3240@30Hz and HDMI 1.4 input up to 3840×2160@60Hz, making it ideal for large-format, high-precision display applications.
Dual Input Support – 1× DP1.2 and 1× HDMI 1.4 input.
Flexible Splicing – Customizable configurations for up to 9-screen video walls.
Modular Design – Scalable to different splicing sizes based on project needs.
Ultra-High Resolution Input – DP supports up to 5760×3240@30Hz and 5760×1080@60Hz.
Custom Resolution Output – Ensures proportional, distortion-free, and non-stretched display.
Versatile Output Options – Compatible with LCD panels and projectors of different resolutions.
True Pixel-to-Pixel Display – Supports 1×2, 1×3, 2×1, 2×3, 3×1, 3×2, 3×3 seamless splicing; other modes display in proportional scaling.
Large-Scale Splicing – Multiple units can be cascaded to build ultra-large video walls.
Advanced Display Control – Supports 180° image rotation and edge masking.
Multiple Control Methods – Infrared remote, front-panel buttons, and RS-232 control.
| Name | Specifications |
| Input Signal | DisplayPort or HDMI 1.4 switchable |
| DP Maximum Resolution | 5760×3240@30Hz |
| HDMI Maximum Resolution | 3840×2160@60Hz |
| Color Depth | 24-bit, 16.77 million colors |
| Output | |
| Output Resolution | 1024*768@60Hz, 1280*800@60Hz, 1280*720@60Hz,
1920*1080@60Hz, 1920*1200@60Hz, optional |
| Output Refresh Rate | 60Hz and 30Hz optional |
| Color Depth | 24-bit, 16.77 million colors |
| Electrical Characteristics | Input voltage: AC 110-220V |
