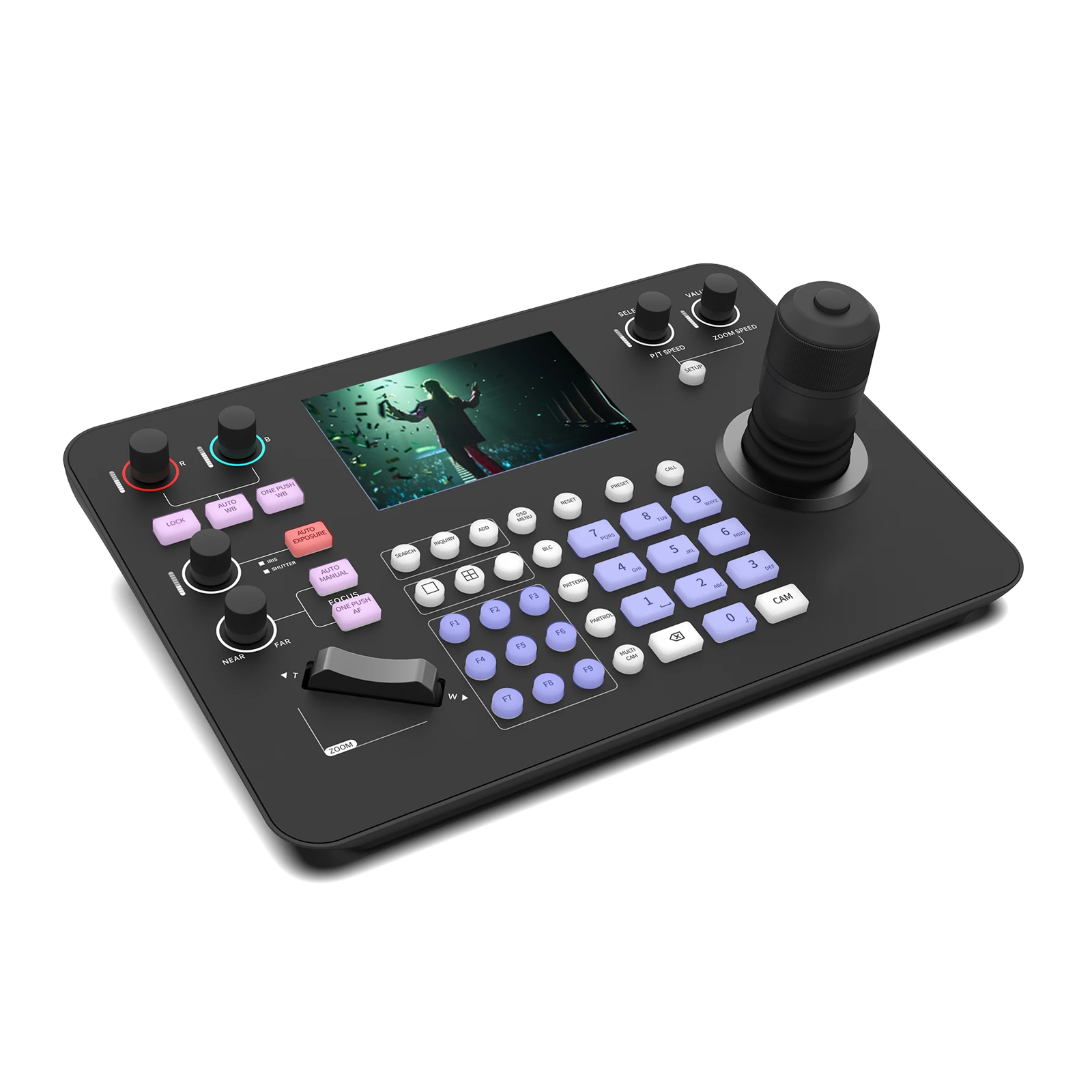

PTZ Camera Keyboard/Controller
PTZ Camera Keyboard/Controller - Image 2

PTZ Camera Keyboard/Controller

PTZ Camera Keyboard/Controller is your all-in-one solution for modern IP-based PTZ workflows. Supporting major IP control protocols including NDI, VISCA over IP, TCP, UDP, and ONVIF, it simplifies complex camera environments into a single interface. Whether for broadcasting, live streaming, or security operations, it ensures flexible, scalable, and efficient control at your fingertips

Request Quote

  • Ergonomic PTZ keyboard controller: intuitive, head-up operation for a relaxed, ergonomic experience
  • Robust, and built for durability, providing stable placement on the desk and remaining firmly in place during operation to ensure smooth, comfortable,and uninterrupted use.
  • 5” LCD screen for monitoring with a user-friendly interface, allowing instant switching to a large, distinct display monitor
  • Up to 4K resolution for table stand or large video monitors
  • Quad PTZ cameras can be monitored and controlled simultaneously
  • Single or Quad display, LCD or external monitor can be switched instantly
  • Quad PTZ cameras can be ergonomically switched using joystick
  • 41 buttons, 6 knobs, Jigsaw, and 7D precise joystick enable precise, efficient workflow management without compromise
  • Customizable button colors and themes boost engagement, visual appeal,and ease of use, ensuring a relaxing, enjoyable experience
  • Support Sony VISCA, VISCA over IP, NDI, ONVIF, and Pelco D/P
  • Live preview and control of NDI HX1/HX2/HX3 cameras
  • Route NDI output of current active video windows
  • Tally boarder sync and Tally GPIO control
  • Quick quad group camera set and call for live preview and control
  • Camera patrol set and call for automated camera control
  • 9 assign buttons for camera shortcut, flip, invert, tracking etc.
  • User assign button for automatic tracking and automatic framing
  • Programmable trigger and ring on joystick
  • Easily control pan, tilt, zoom, and camera settings via OSD, with quick access to presets like Shutter, Focus, Iris, Gain, Zoom, and speeds
  • ZowieUI empowered Web control by PC, smartphone and tablet
  • Eco-friendly enclosure from alloy without plastics
  • Can be powered by either DC or PoE
  • RESTFUL API supported for DIY automation and system integrator
Camera Control
PTZ Control Sony VISCA, VISCA over IP, VISCA, Pelco P/D;OnVIF, NDI | HX
Focus Control AF, MF with toggle Dial Knob
Auto Focus Button
Manual Focus One Push, MF with Near/Far Toggle Dial Knob
Exposure Control AE, SAE,AAE, Toggle Dial Knob
Auto Exposure Button
Manual Exposure IRIS, Shutter, MF with toggle Dial Knob
Auto WB Button
Manual WB One Push WB, Manual with R/B Gain Toggle Dial
BLC Button
Joystick Zoom Ring Yes
AI Camera Control User definable, Camera Dependent
OSD menu Button/Interaction with Joystick
Baud Rate 2400/4800/9600/19200/38400 bps
Camera Access
Max. Camera Support 255
Max. Preset Support 255
Max. Camera Group 255
Max. Camera Patrol 9
Max. Camera Pattern 9
Direct Camera 9
IP Camera 255(OnVIF), 255(VISCA over IP)
Serial Camera 7(VISCA), 7(RS422), 255(RS485)
Video Display
LCD 5
LCD Resolution 800 x 480
HDMI 1080p/2160p
HDMI Out 1.4b, 4:2:2(YCbCr)
LCD/HDMI Auto switch/Button
Tally Border Selectable
Single/Quad Button
Audio
Line Output 16ohm, 30mW
Audio Output HDMI embedded
Streaming
NDI® NDI® | HX3/HX2/HX(NDI 5.5, Upgradeable)
NDI Router Current activate camera
Multiview Video NDI HX, RTSP up to 1080p
Full Screen Video NDI HX, RTSP up to 4K/30
Codec H.264, H.265*NDI Full/HB is not supported
Configuration
Display LCD, HDMI
Setting Keyboard, Smart Phone, Tablet, PC, RESTFUL
API RESTFul, ZowieAPI
UI ZowieUI
Pan/Tilt/Zoom and Control
Protocol IP VISCA, VISCA, Pelco P/D, NDI®, OnVIF
IR, RESTFUL API Control Phone, Pad, PC, Controller, Web, IR
OSD Menu Support
P/T Speed Yes, Toggle Dial Knob
Zoom Speed Yes, Toggle Dial Knob
Preset Position 255
Zoom Zoom Rocker, Calibratable Joystick Ring, Programmable, Calibratable
